16mm push button connection (OT1091)
Show all:
Buttons and Switches
Lage verzendkosten vanaf
Orders placed before 15:00 on working days are shipped the same day.
30 dagen bedenktijd
1 jaar garantie
Description

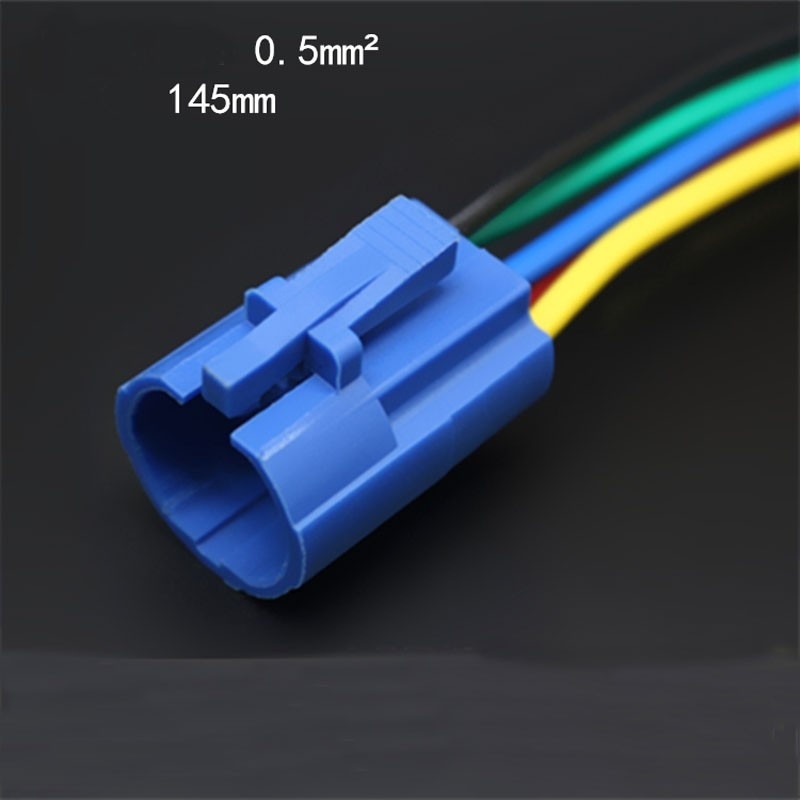

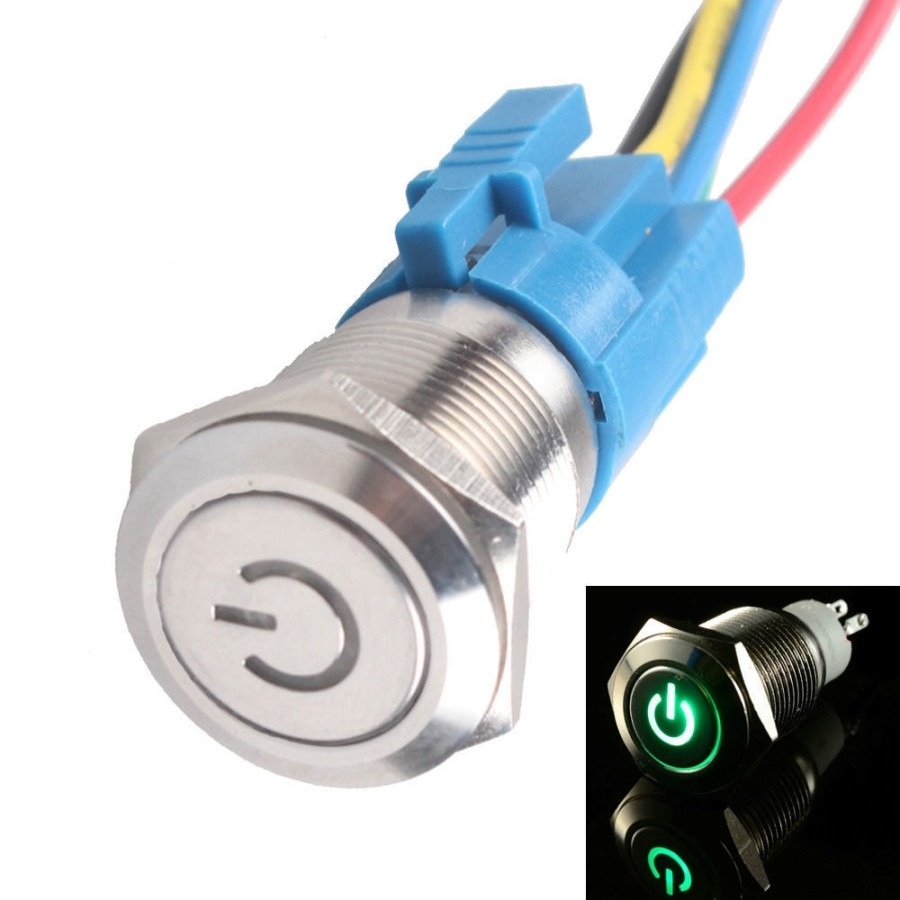

This 16mm push button terminal is an electrical connector used to connect 16mm push buttons to wiring systems.

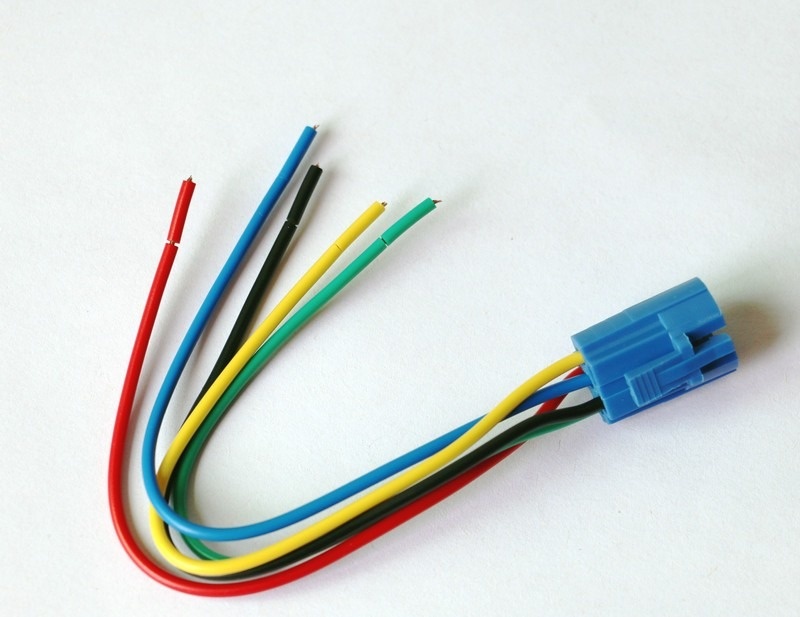

Connection:Red: LED +Black: LED -Yellow: NC (Normally Closed)Green: NO (Normally Open)Blue: COM (Common)
Typically, the COM and NO are used to switch a wire. (Blue and Green)

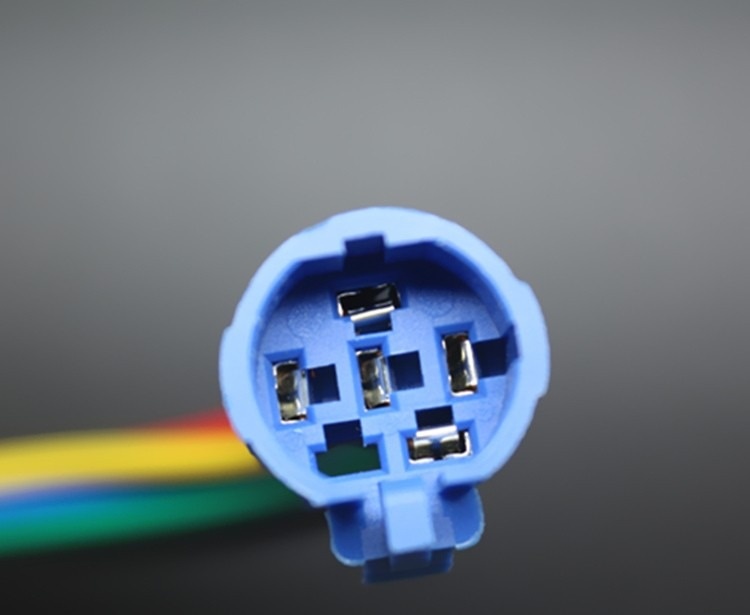

The terminal consists of two main parts: the socket (also known as a connection) and the cable. The socket is the female part of the connector, while the cable is the male part that plugs into the socket.
The 16mm push button terminal has a diameter of 16mm, which refers to the size of the connector. This size may vary depending on the specific application and requirements.
This connector allows for easy and quick installation, as the wires of the cable can be easily connected to the pins or terminals in the socket. This provides a secure connection that is resistant to vibration and other environmental factors.
Using the 16mm push button connection provides a reliable solution for connecting push buttons and switches in various electrical systems. It simplifies installation, simplifies maintenance and ensures safe operation of the electrical circuits.
