2.4 inch OLED display 128x64 Green I2C SSD1309 3.3V (OT8994)
Show all:
Displays,OLED Displays
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description

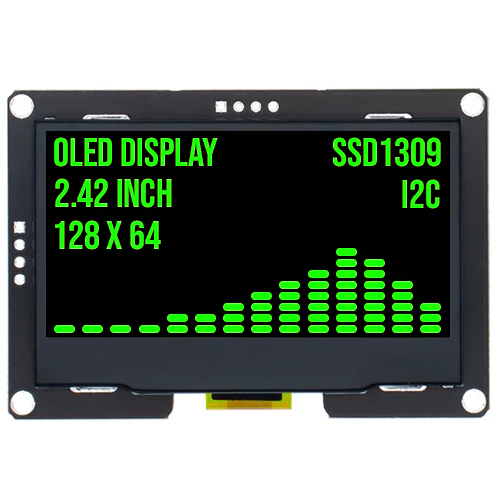

This is a 2.42 inch OLED display module with a resolution of 128x64. These OLED graphic displays offer very good contrast and do not require a backlight. The screen can achieve a higher contrast ratio than an LCD. OLED display modules also have a much faster response time than your standard LCD display. This unit uses the SSD1309 driver, can be interfaced using I2C, and is blue on black.

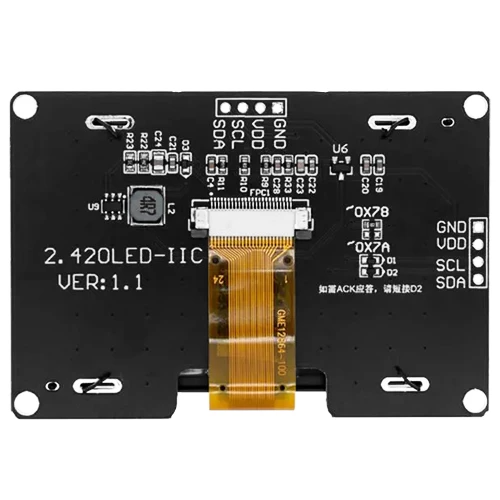

I2C Address: 0x3C (address on the back is incorrect)
Specifications
Size: 2.42 inch
Resolution: 128 x 64
Display Type: OLED
Color: Green on Black
Driver IC: SSD1309
Working Voltage: 3.3V
Interface: I2C
Dimensions: 70 x 48 x 6 mm
SSD1309 Library
Read moreRead lessI2C Address: 0x3C (address on the back is incorrect)
Specifications
Size: 2.42 inch
Resolution: 128 x 64
Display Type: OLED
Color: Green on Black
Driver IC: SSD1309
Working Voltage: 3.3V
Interface: I2C
Dimensions: 70 x 48 x 6 mm
SSD1309 Library
