BackHome3.3V Micro SD card module for ESP32 | ESP8266
Art: AA440EAN: 8720589817333

3.3V Micro SD card module for ESP32 | ESP8266 (OT2044-D79)

Show all: Communication
Otronic 3.3V Micro SD card module for ESP32 | ESP8266
Otronic 3.3V Micro SD card module for ESP32 | ESP8266
Otronic 3.3V Micro SD card module for ESP32 | ESP8266
Otronic 3.3V Micro SD card module for ESP32 | ESP8266Otronic 3.3V Micro SD card module for ESP32 | ESP8266Otronic 3.3V Micro SD card module for ESP32 | ESP8266
€1,49
Required fields:
    Simple MicroSD card reader module. Due to its operation on 3.3V it is well suited for example ESP32 or ESP8266. The module is equipped with the necessaryRead more
    Lage verzendkosten vanaf
    30 dagen bedenktijd
    1 jaar garantie

    Description

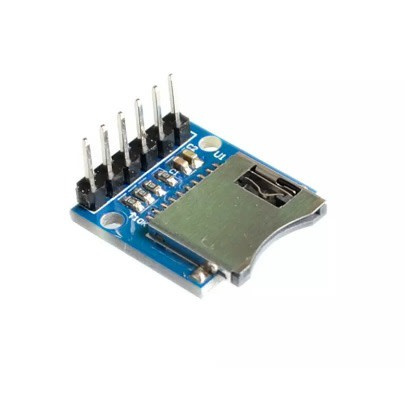

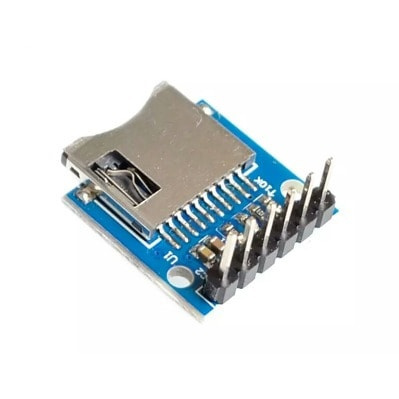

    Simple MicroSD card reader module. Due to its operation on 3.3V it is well suited for e.g. ESP32 or ESP8266. The module is equipped with the necessary 10K pull-up resistors on the data lines.

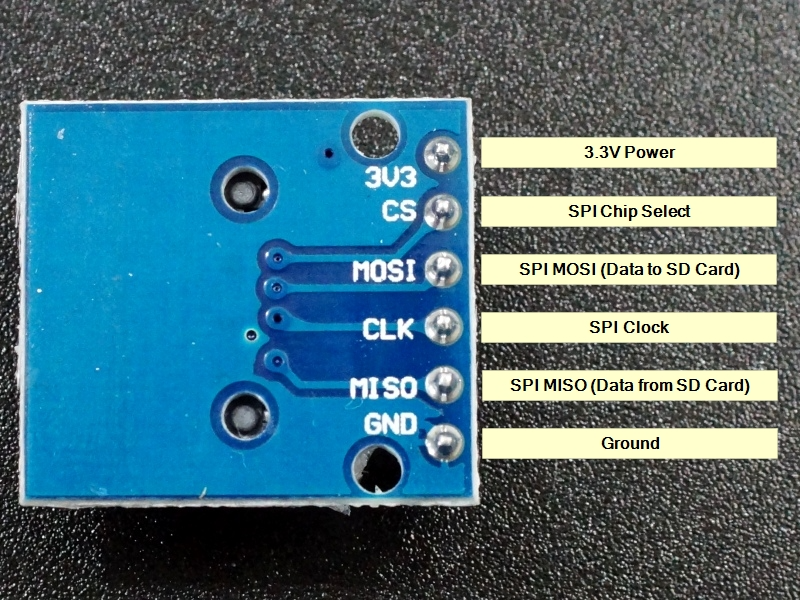

    Specifications:– Operating voltage: 3.3V- Type micro SD slot: Push-Pull– Interface: SPI– Operating voltage (logic level): 3.3V
    Pin headers already pre-soldered.
    DimensionsLength: 2cmWidth: 1.8cmHeight: 1.1cm
    Read more
