400W Adjustable Treble/Bass 2-way crossover filter (OT3525)

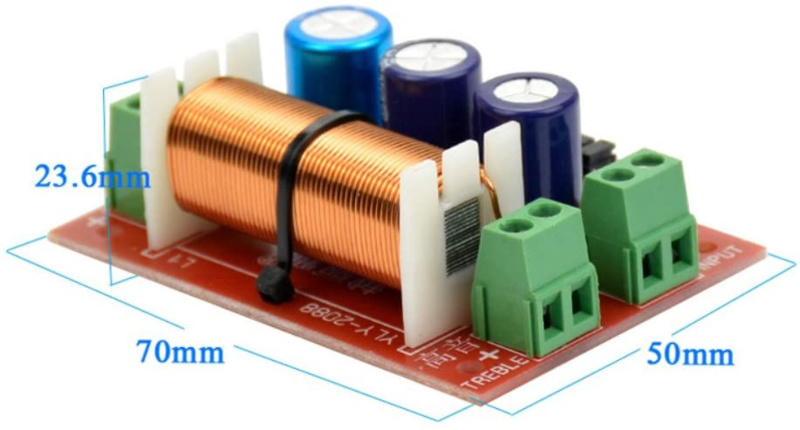

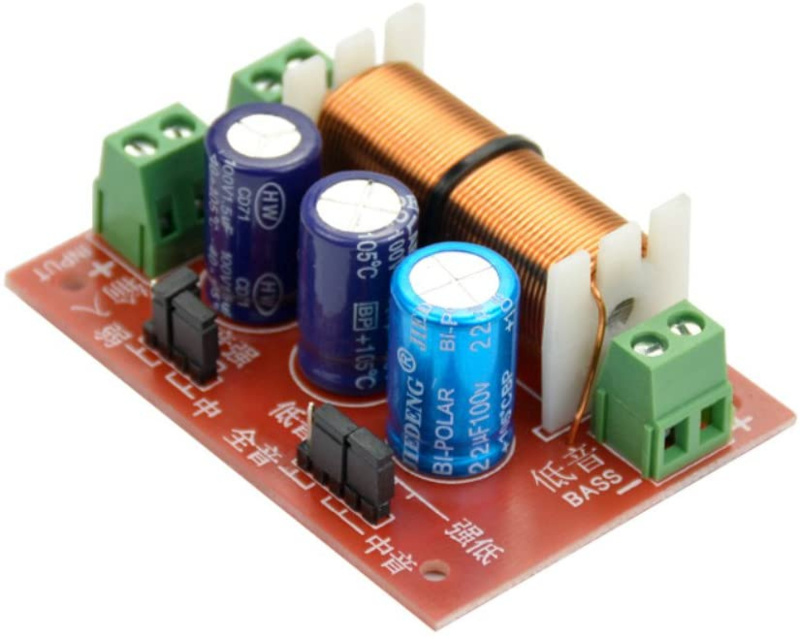

This 2-way filter is of high quality. The coil is made of oxygen-free pure copper wire with a wire diameter of 0.8mm. The crossover has 2 outputs: Treble and Bass. The frequency range can be set with 4 jumpers to optimize the control of the speakers. Jumper A is for Subwoofer tones up to 100Hz with output on Bass channel Jumper B is for Woofer tones from 100hz to 500Hz with output on Bass channel Jumper C is for Mid range from 500Hz to 10,000Hz with output on Treble channel Jumper D is for High tones from 10,000Hz to +20,000Hz with output on Treble channel Specifications: Power: 400 WImpendance: 4-16 Ohm Size: approx. 70x50mm (2.76x1.97in) Quantity: 1 pc Dimensions Length: 6.9cm Width: 5cm Height: 2.6cm
