Art: AB094EAN: 8720618690326

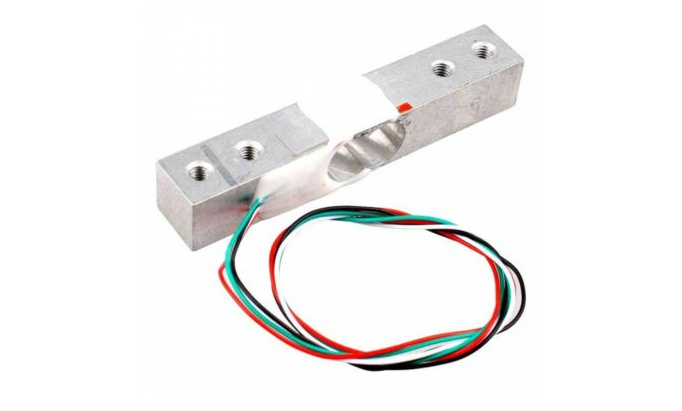

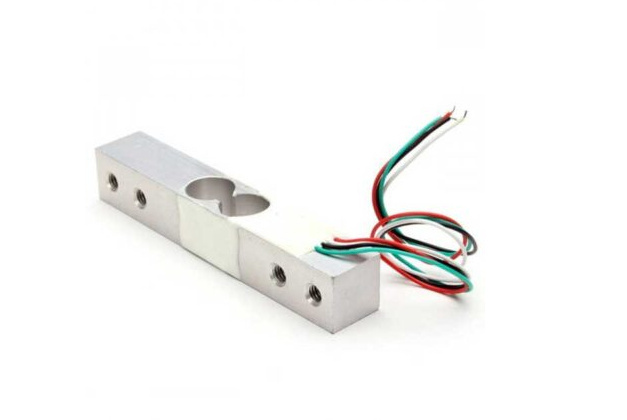

5kg Load Cell Sensor YZC-131 with wiring (OT3577)
Show all:
Sensors,Weight Sensors
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description
This Load Cell is suitable for measuring up to 5kg and is used in digital kitchen scales, among other things. To read the sensor, you need an HX-711 Load Cell amplifier. You cannot connect the sensor directly to an Arduino. There are 4 tapped holes in the Load Cell so that you can mount it securely with M4 bolts. When mounting, make sure that it is mounted correctly for reliable measurement: with the green arrow pointing to the ground. Technical specifications Measuring range: 0 to 5kg Dimensions: 75 x 12.70 x 12.70 mm Weight: 30 grams Number of wires: 4 Connection wires Red: + Excitation Black: - Excitation Green: + Signal White: - Signal
