6S 15A 22V 24V BMS for lithium batteries (OT3585)
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description

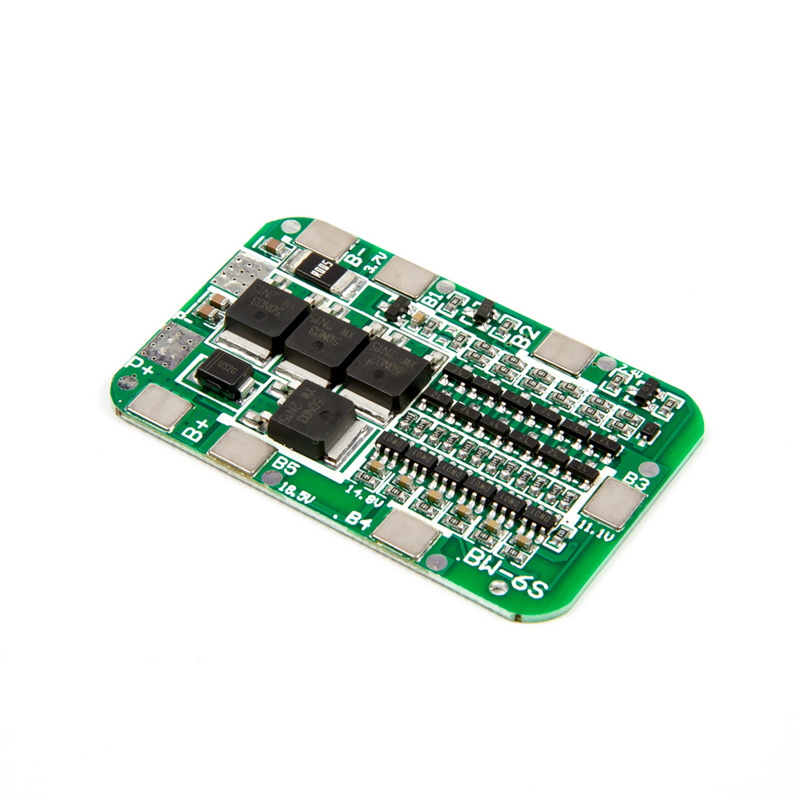

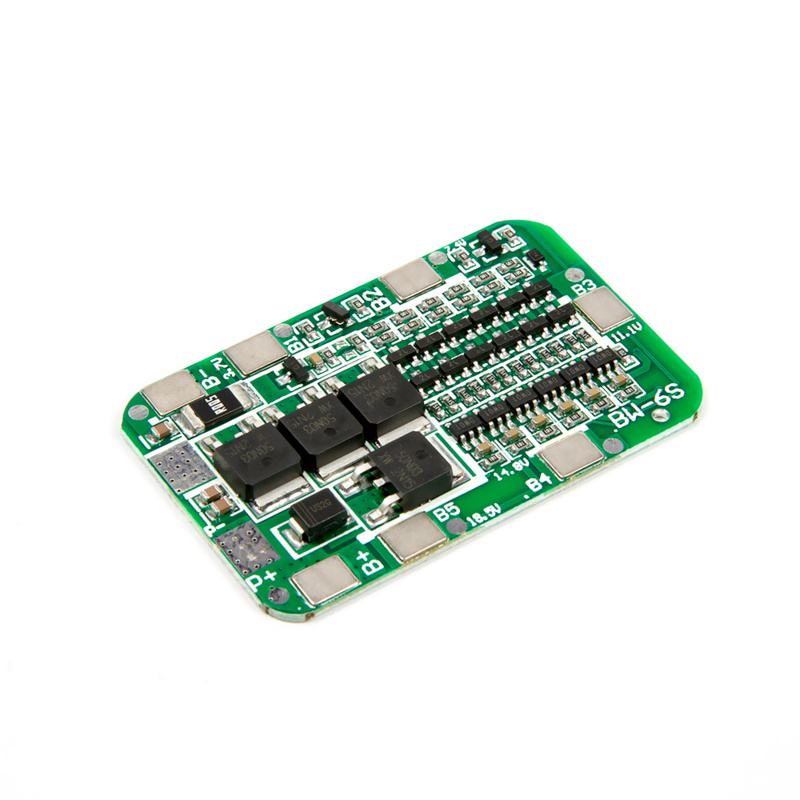

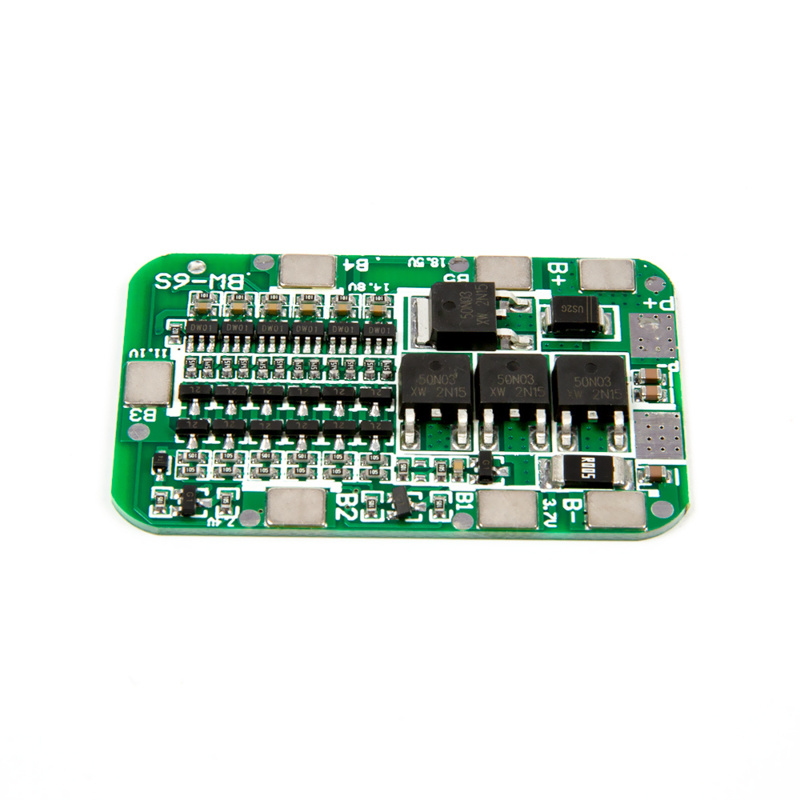

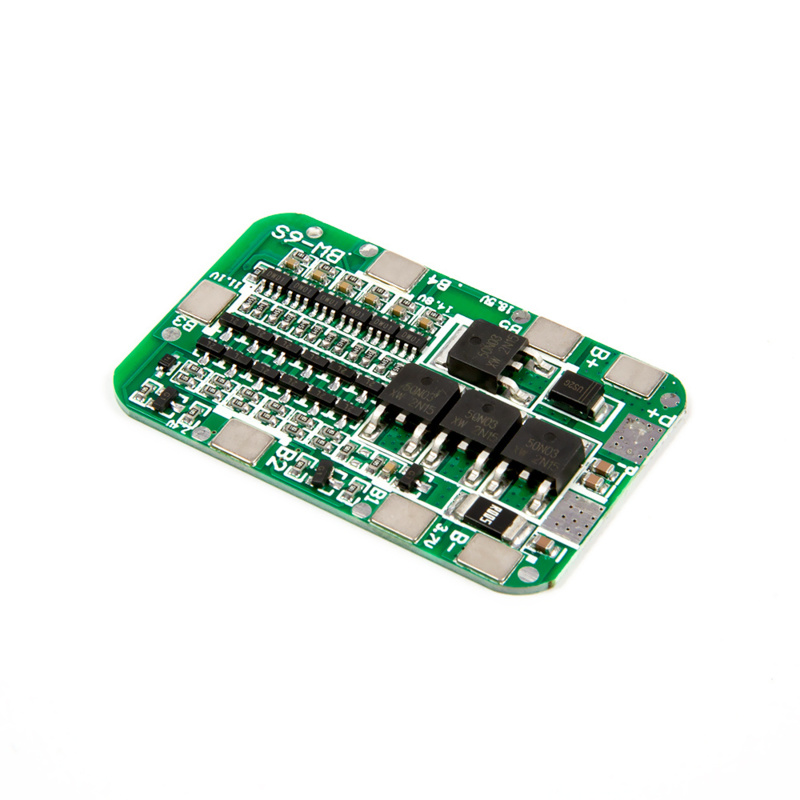

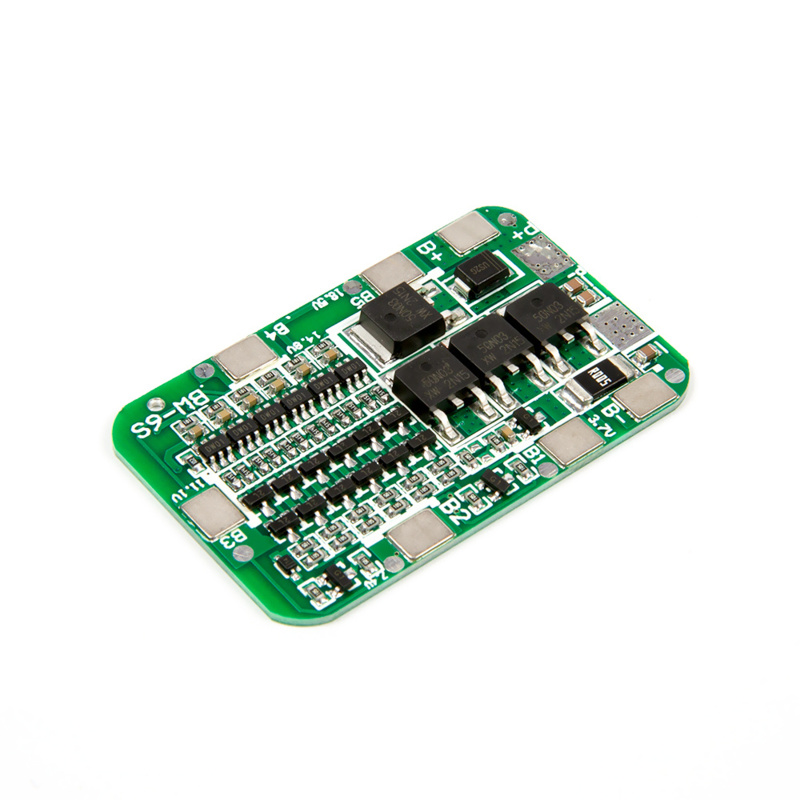

This board is ideal for connecting 6 18650 batteries in series and charging them at the same time. Protects the batteries from being discharged too deeply and also protects against overcharging.Size: about 50 * 30 * 2mmMaximum discharge current: 15AInstantaneous discharge current Max: 25ACharging voltage: 25.5VCharging current: 15A (MAX)Overcharge detection voltage: 4.28 ± 0.05VOvercharge protection delay: 0.1SOvercharge voltage: 4.08 ± 0.05VOverdischarge detection voltage: 2.55 ± 0.08VOverdischarge detection delay: 0.1SOverdischarge voltage: 2.9 ± 0.1VOvercurrent detection voltage: 150mVOvercurrent detection delay: 9MSOvercurrent protection current: 30 ± 3AOvercurrent protection release condition: Disconnect the load!Short circuit detection delay: 250uShort circuit protection release condition: disconnect negative openMain circuit conduction resistance: ≤20mWorking current: ≤30uASleep current (battery over discharge) ≤10uATemperature range: -30 / + 80DimensionsLength: 5cmWidth: 3.2cmHeight: 0.2cm
