Adjustable Step-down Module 3-40VDC to 1.5-35VDC LM2596 (OT2073-B48)
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description

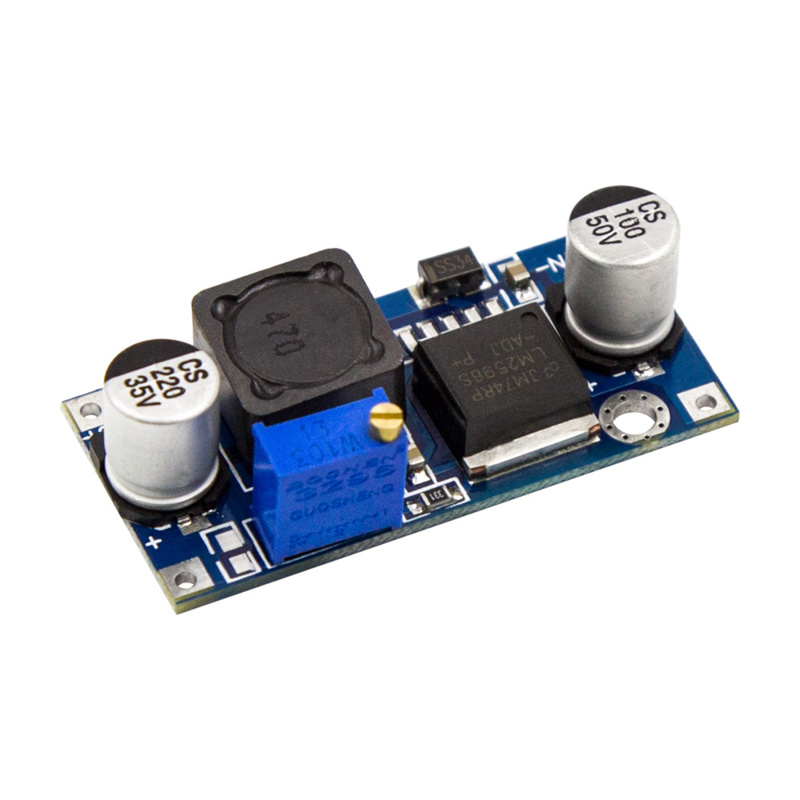

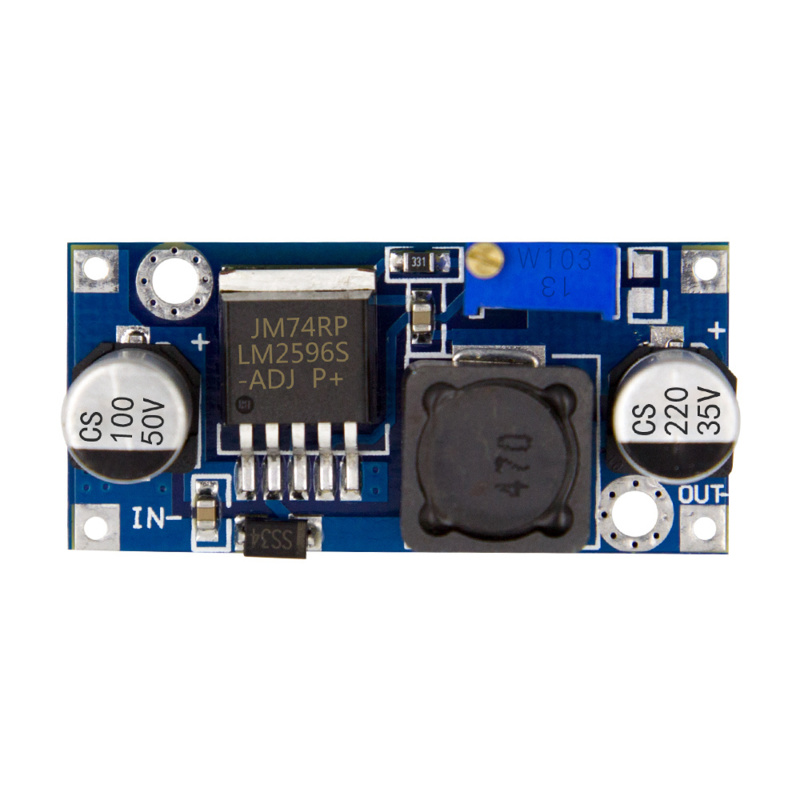

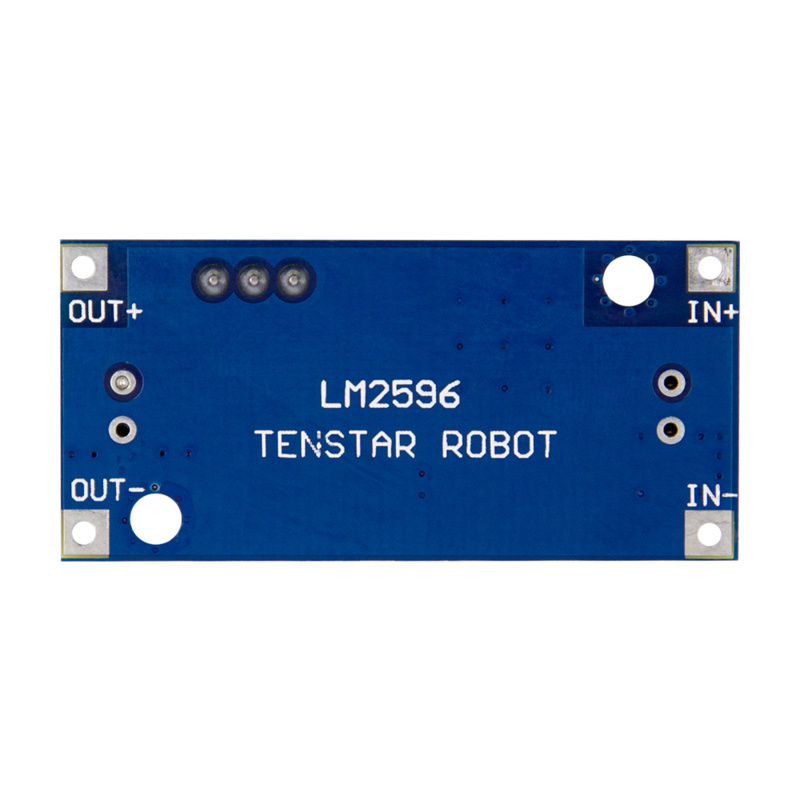

The LM2596 step-down module allows you to convert a DC input voltage between 3V and 40V to an adjustable DC output voltage from 1.5V to 35V. The LM2596 module stabilizes the output voltage and remains stable as long as the input voltage is not lower than 10% above the output voltage. This can be useful, for example, when powering electronic devices that operate at a lower voltage than the standard supply voltage. The LM2596 module is equipped with a potentiometer with which the output voltage can be easily adjusted.
The module has an output current of up to 3A with an efficiency of up to 92%. The LM2596 has built-in protection functions (such as overheating, overcurrent and short circuit) to ensure that your equipment is safely powered.
Technical specifications:- Input voltage: 3V - 40V DC- Output voltage: 1.5V - 35V DC (adjustable)- Maximum output current: 3A- Efficiency: up to 92%- Built-in protection functions (overheating, overcurrent, short circuit)- Dimensions: 43mm x 21mm x 14mm
Read moreRead lessThe module has an output current of up to 3A with an efficiency of up to 92%. The LM2596 has built-in protection functions (such as overheating, overcurrent and short circuit) to ensure that your equipment is safely powered.
Technical specifications:- Input voltage: 3V - 40V DC- Output voltage: 1.5V - 35V DC (adjustable)- Maximum output current: 3A- Efficiency: up to 92%- Built-in protection functions (overheating, overcurrent, short circuit)- Dimensions: 43mm x 21mm x 14mm
