Ambient Light and Proximity sensor APDS-9930 (OT2082-D98)

Super fun for your Arduino or ESP8266 or ESP32 project. The APDS-9930 sensor is a chip that can measure ambient light and (short) distance. The distance detection works up to about 100mm, this chip is often used in phones to lock / dim the screen when the phone is held against the ear. Furthermore, the light intensity and the color of the light (RGB) can be measured.

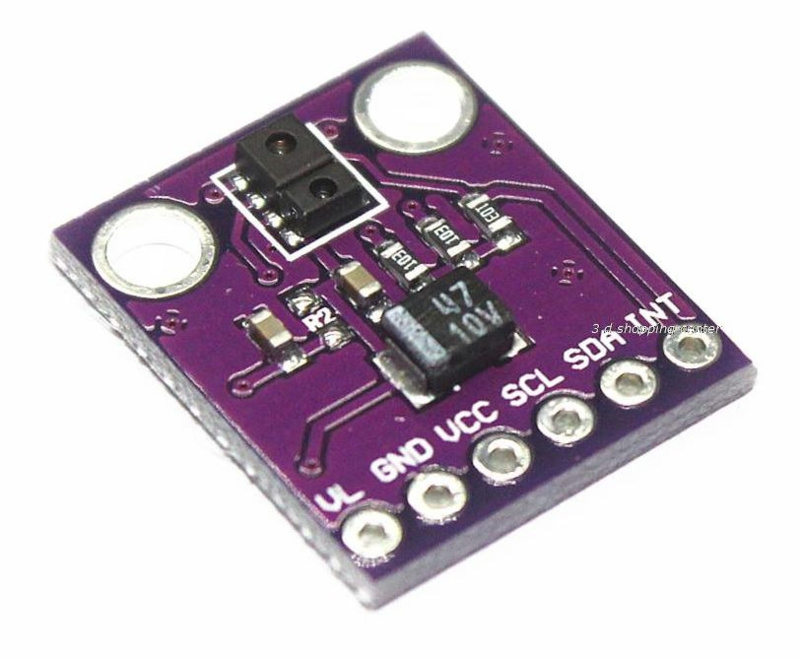

Pins:

VL (optional power supply IR LED),
GND (Ground),
VCC (3.3V input for APDS-9930 sensor),
SDA (I2C data),
SCL (I2C clock),
INT (interrupt).

Features:

Operational Voltage: 3.3V
Ambient Light & RGB Color Sensing
Proximity Sensing
Operating Range: 4-8in (10-20cm)
I2C Interface (I2C Address: 0x39)

Features

IR LED and proximity detector in one optical module
Ambient Light Sensing (ALS)
Programmable interrupt function with upper and lower threshold
Up to 16-bit resolution
High sensitivity Works behind darkened glass
Low lux performance at 0.01Lux
Presence Detection
Fully calibrated up to 100mm detection
Integrated IR LED and synchronous LED Driver
I2C interface compatible
up to 400kHz (I2C fast mode)
dedicated interrupt pin
sleep mode power – 2.2uA typical


DimensionsLength: 1.82cmWidth: 1.54cmHeight: 0.4cm
