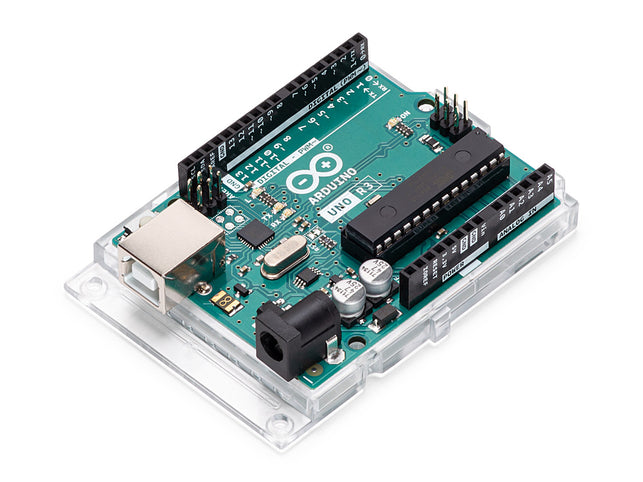

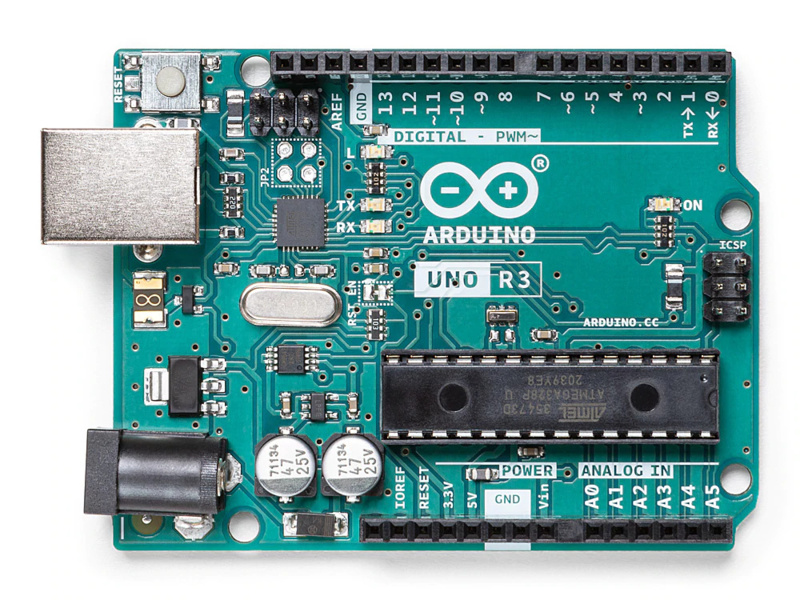

Arduino® UNO Rev3 Original DIP (OTA004)

Original Arduino® UNO Rev3 DIP version from Italy!
Discover the versatility of the Arduino Uno R3 microcontroller board! Based on the ATmega328P, the Arduino Uno R3 offers a wide range of possibilities for electronic projects. With 14 digital input/output ports (including 6 PWM outputs), 6 analog inputs and a clock frequency of 16 MHz, this board is an ideal choice for both beginners and advanced users.
The Arduino Uno R3 is designed for easy experimentation and prototyping. Simply connect the board to your computer via the USB connection, or use an AC-to-DC adapter or battery to get started. With the Arduino Software (IDE), you can easily program and explore the functionality of the Uno R3.
Whether you are interested in developing electronic circuits, controlling motors or building interactive projects, the Arduino Uno R3 offers all the possibilities you need. Thanks to the 14 digital input/output ports you can connect various sensors, switches and actuators. The 6 analog inputs allow you to measure analog signals, while the 6 PWM outputs are useful for controlling motors, adjusting light intensity, and more.
The technical specifications of the Arduino Uno R3 are as follows:

Microcontroller: ATmega328P
Working Voltage: 5V
Recommended Input Voltage: 7-12V
Maximum Input Voltage: 6-20V
Digital I/O Pins: 14 (of which 6 are PWM outputs)
PWM Digital I/O Pins: 6
Analog Input Pins: 6
DC Current per I/O pins: 20mA
DC Current for 3.3V pin: 50 mA
Flash memory: 32 KB (ATmega328P) of which 0.5 KB is used by the bootloader
SRAM: 2 KB (ATmega328P)
EEPROM: 1 KB (ATmega328P)
Clock frequency: 16 MHz
On-board LED on pin 13
Dimensions: 68.6 mm (length) x 53.4 mm (width)
Weight: 25 g

The Arduino Uno R3 is the ideal choice for hobbyists, students, and professionals interested in exploring the possibilities of microcontrollers and electronics. Whether you're a beginner learning to program or an experienced user looking to create complex projects, the Arduino Uno R3 gives you the freedom to unleash your creativity.
Discover the endless possibilities of the Arduino Uno R3 and start your electronic adventure today!_x005F_x000D_
