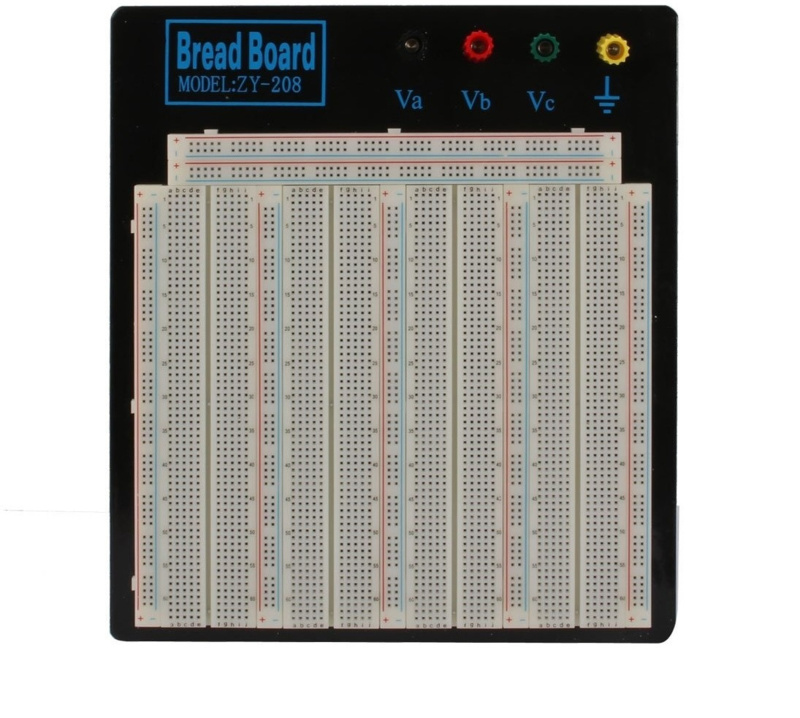

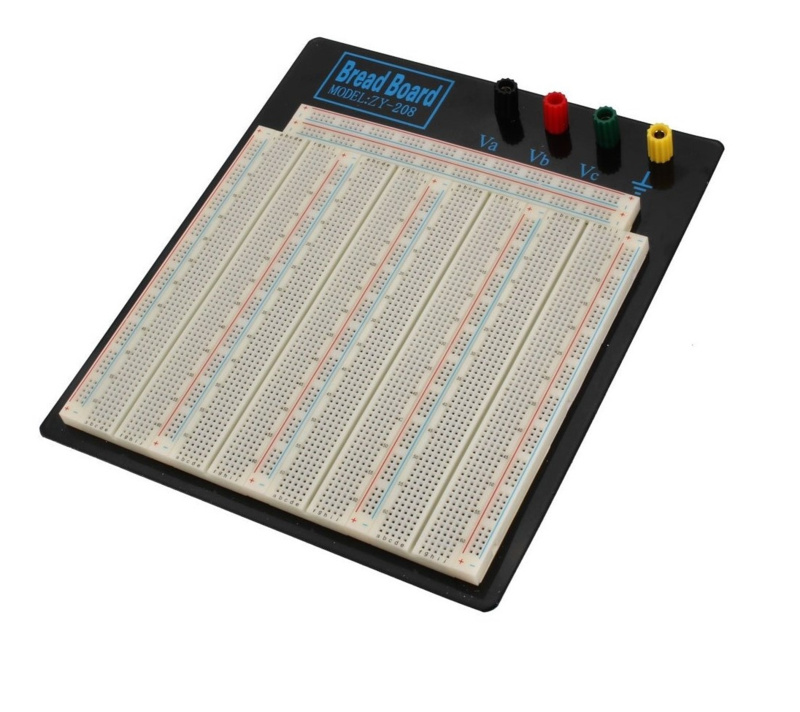

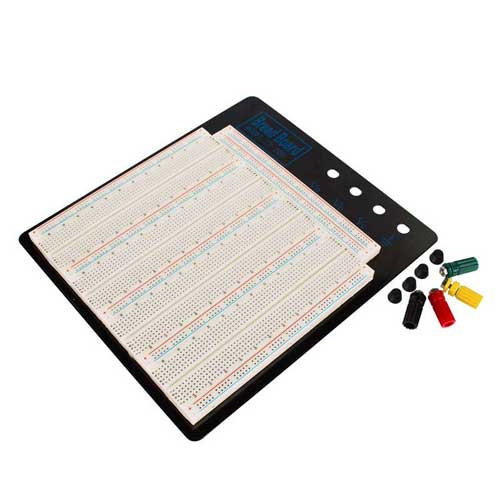

Breadboard, 3220 Holes - ZY 208, with 4 clamps (OT3465)

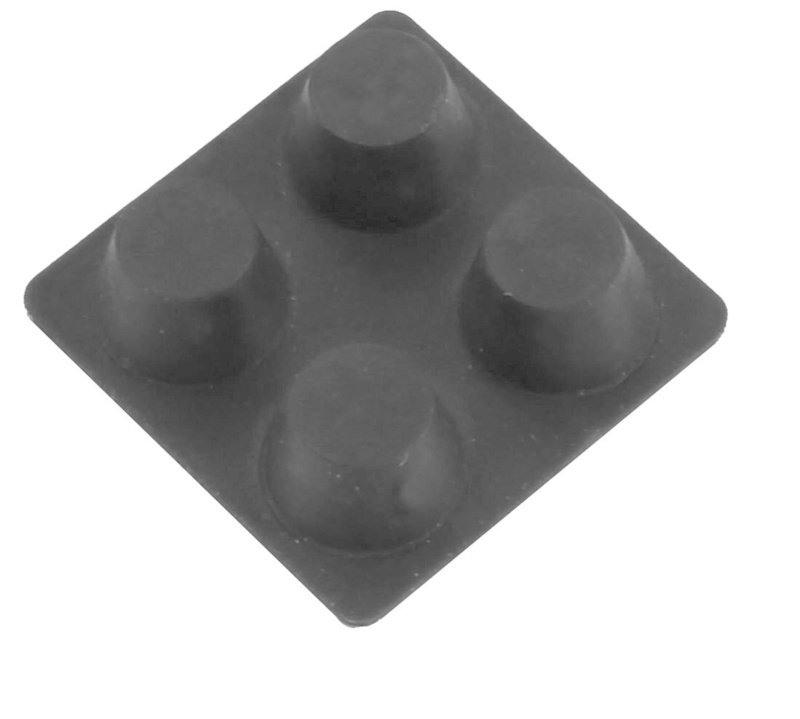

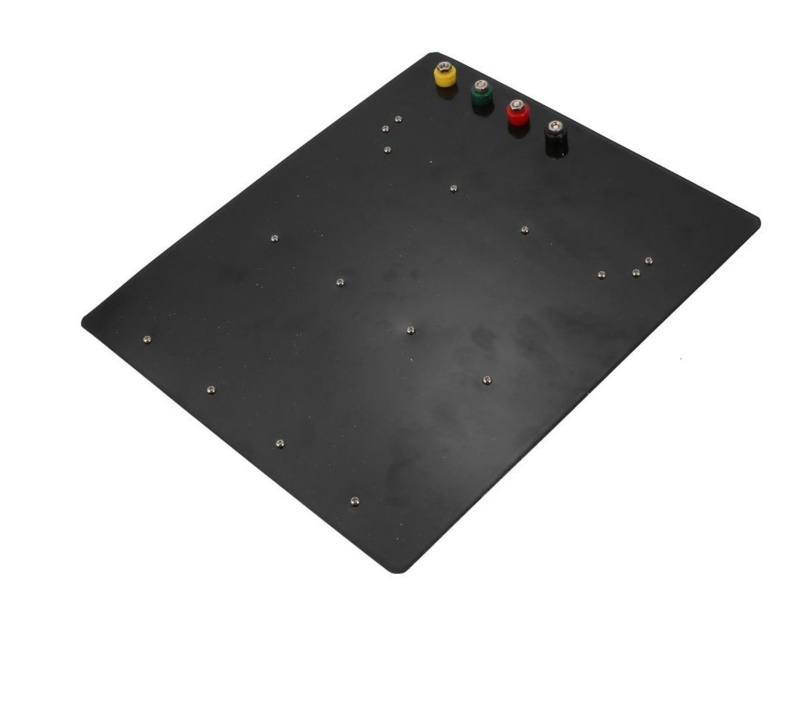

The largest breadboard in our range, the ZY208. Designed for solderless experiments with electronic circuits. Simply connect components to the breadboard, connect with some jumper wires and the experiment works! Saves time by not having to solder and is also convenient and more environmentally friendly. The aluminum board has 4 round holes to install the clamps for extra power - three different voltages and a GND, suitable for doing experiments that work under different voltages at the same time. Plenty of space to experiment with sensors, components and the development boards from our range. With separate plugs for external power and signals. This board makes it possible to experiment in different ways with different media. This black aluminum board can be fitted with 4 included rubber feet, making it easy to position on a desk or workbench. Features 7 power buses, 40 columns and 63 rows - totaling 3220 tie points and standard 0.1" spacing. Sets of five columns are separated by approximately 0.3" making it perfect for spreading out a DIP package. Accepts wire sizes from 20-29 AWG. ABS plastic. Black aluminum plate. Fully reusable. Colored coordinates for easy component placement. Phosphor bronze nickel plated spring terminals. Accepts various wire sizes (29-20 AWG) Solderless breadboards are often used for prototyping because they allow you to quickly build temporary circuits without having to solder. Breadboards accept most common components and wire. When you are finished or want to change your project, it is easy to take your circuit apart. For best results, use sturdy wires when breadboarding; very useful for this are various Dupont cables and other wire bridges/jumperwires in our assortment.
