Distance sensor Time-Of-Flight very accurate (OT5863)
Show all:
Sensors,Distance Sensors
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description
Mini laser distance sensor module with 1mm accuracy and long range.
Model: TOF050C-VL6180X Voltage: 3V to 5V Current consumption: 40mA (max) Distance: 3cm to 50cm

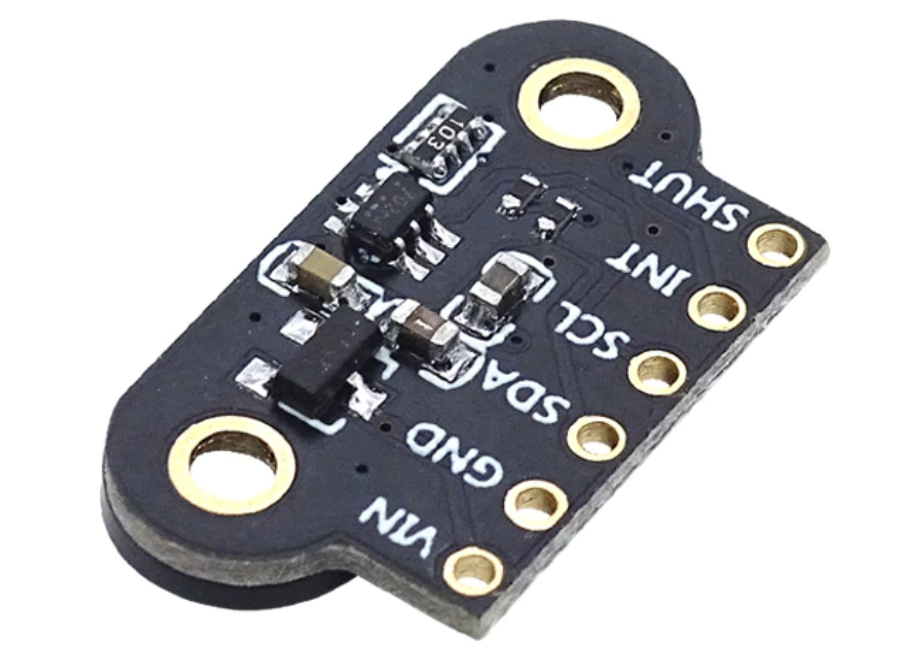

Connections: - VIN - GND - SDA - SCL - INT - SHUT
Communication: I2C communication protocol (fully compatible with 3-5V system)
Suitable for Arduino, ESP8266 and ESP32. Works well with the Adafruit_VL6180X library.
Multiple sensors on 1 I2C line possible because the sensors can be provided with an I2C address in software.
The VL53L0X Time Of Flight laser sensor is a very precise and reliable sensor that can be used for a wide range of applications, including distance measurement, motion detection and navigation.
One of the main advantages of this sensor is its precision. The sensor uses laser technology to measure the distance to an object, giving a much more accurate result than, for example, an infrared sensor. This makes the sensor suitable for use in drones, industrial automation and robots, for example.
In addition, the sensor is also very easy to use. It is compatible with a wide range of microcontroller platforms, including Arduino, Raspberry Pi and STM32, and there are many examples and libraries available to help you integrate the sensor into your project.
Finally, the sensor is also very small and lightweight, making it easy to integrate into a wide range of applications. The 2 screw holes also make it very easy to securely mount this sensor.

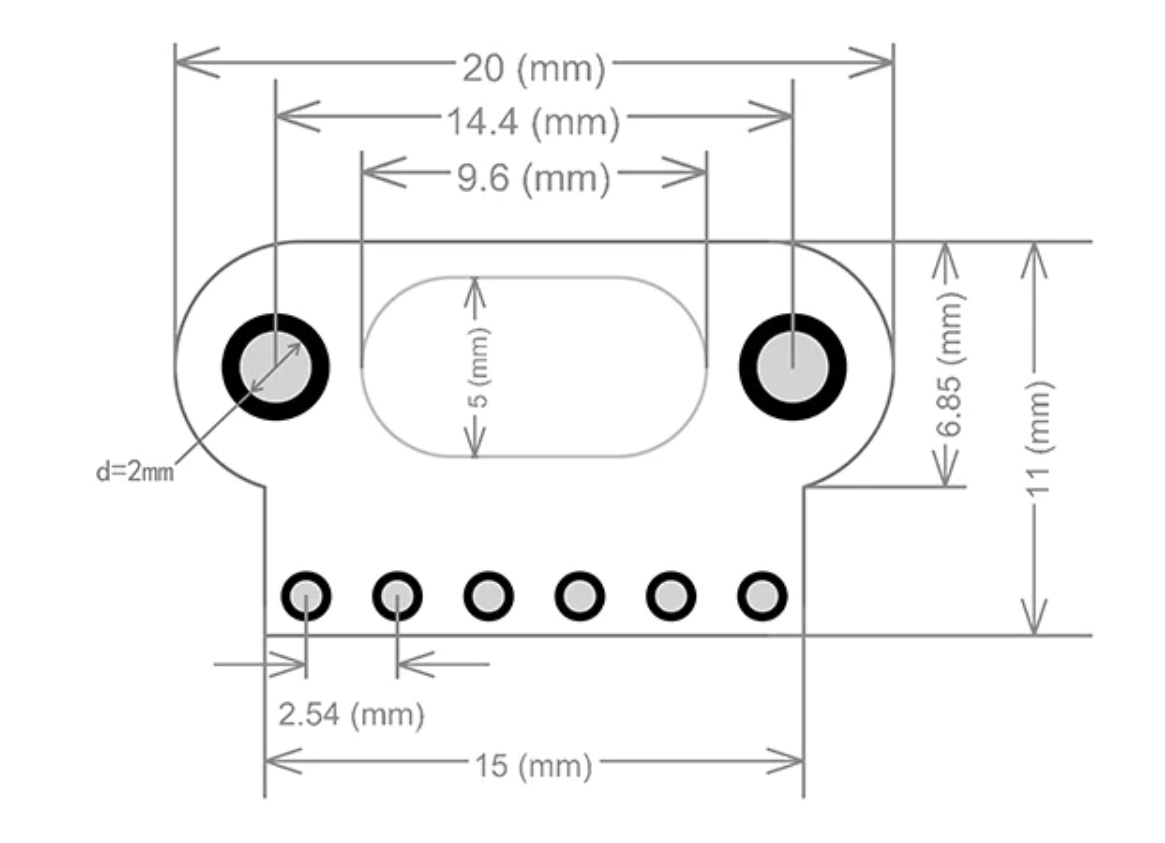

DimensionsLength: 1.3cmWidth: 1.04cmHeight: 0.32cm
Read moreRead lessModel: TOF050C-VL6180X Voltage: 3V to 5V Current consumption: 40mA (max) Distance: 3cm to 50cm
Connections: - VIN - GND - SDA - SCL - INT - SHUT
Communication: I2C communication protocol (fully compatible with 3-5V system)
Suitable for Arduino, ESP8266 and ESP32. Works well with the Adafruit_VL6180X library.
Multiple sensors on 1 I2C line possible because the sensors can be provided with an I2C address in software.
The VL53L0X Time Of Flight laser sensor is a very precise and reliable sensor that can be used for a wide range of applications, including distance measurement, motion detection and navigation.
One of the main advantages of this sensor is its precision. The sensor uses laser technology to measure the distance to an object, giving a much more accurate result than, for example, an infrared sensor. This makes the sensor suitable for use in drones, industrial automation and robots, for example.
In addition, the sensor is also very easy to use. It is compatible with a wide range of microcontroller platforms, including Arduino, Raspberry Pi and STM32, and there are many examples and libraries available to help you integrate the sensor into your project.
Finally, the sensor is also very small and lightweight, making it easy to integrate into a wide range of applications. The 2 screw holes also make it very easy to securely mount this sensor.
DimensionsLength: 1.3cmWidth: 1.04cmHeight: 0.32cm
