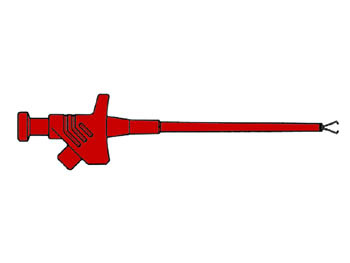

Flexible Clamp Test Pen Red (OT3298)

The Flexible Clamp Test Pen with Rotating Clamp and Flexible Shaft is a handy tool for electrical testing purposes. The special shape of this test pen allows you to easily clamp pins and wires with a maximum diameter of 4 mm. The clamp has a rotating mechanism, allowing you to adjust the grip to suit your needs.
The Flexible Clamp Test Pen has a sturdy 4 mm brass connector with a lateral screw, allowing you to securely connect to various electrical devices and circuits. The surface of the clamp is nickel plated, which ensures durability and good conductivity.
Technical Specifications:

Hook Material: Steel
Socket Size: 4mm
Clamp Type: Rotary Clamp
Surface Material: Nickel Plated
Current Rating: 5A
Contact Resistance: 50mΩ
Temperature Range: -25-80°C
Flexible Shaft
Clamping Range: 4mm
Maximum Wire Size: 4mm
Connection Type: Screw, Fitting
Voltage VDC: 60V

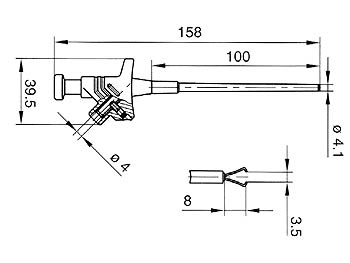

Basic Product Information:

Product colour: Red
Product depth: 13 mm
Product height: 158 mm
Product width: 39.5 mm
Product weight: 19.5 g
Material: Thermoplastic_x005F_x000D_
