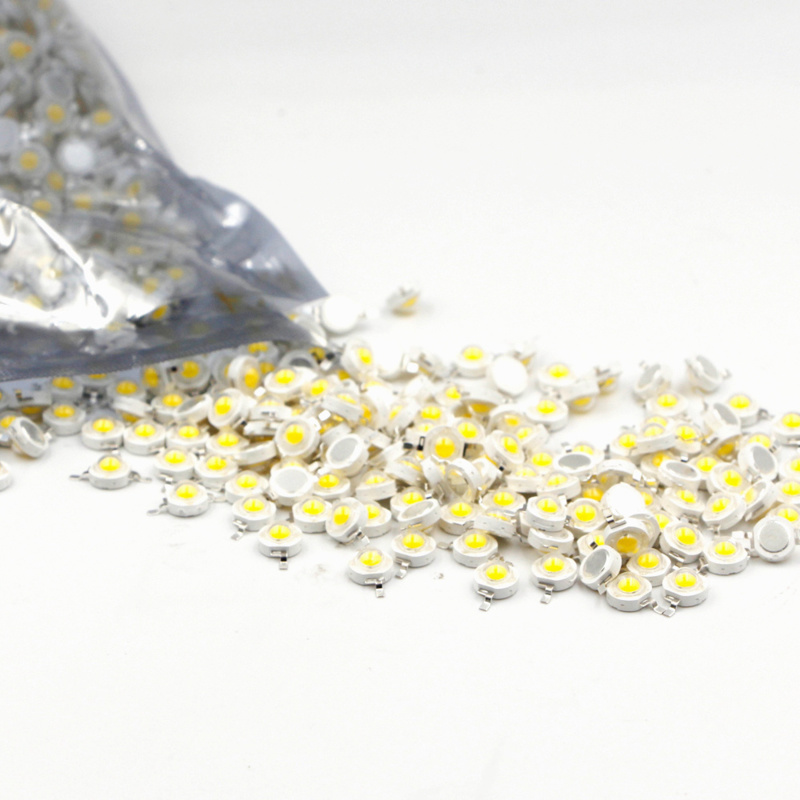

SMD 1W High Power LED - Cool White (OT8525)

These High Power LEDs are ideal for spot lighting and require a voltage between 3.0 and 3.5V, with a nominal value of 3.3V.

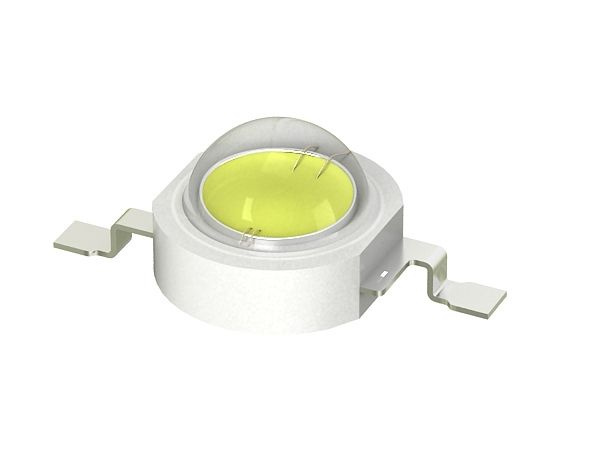

The LED is provided with a silicone layer and surrounded by white plastic. They are mounted on a metal base that acts as a heat sink.
Two metal arms protrude from the plastic construction through which the connection is made.
Due to the considerable heat production, these LEDs must be cooled. A suitable heatsink/cooling block is the OT8526, to which the LEDs can be soldered.
In order to cool the LEDs as efficiently as possible, it is advisable to place them as close to the heatsink as possible, so that the center of the LED also comes into contact with the heatsink. The plus and minus connections are indicated on the heatsink (the LED shows where the minus/ground is).
In addition to the soldering points of the LED, wires can also be soldered. The dimensions of the LED are 20 mm in diameter and 1.3 mm thick.
