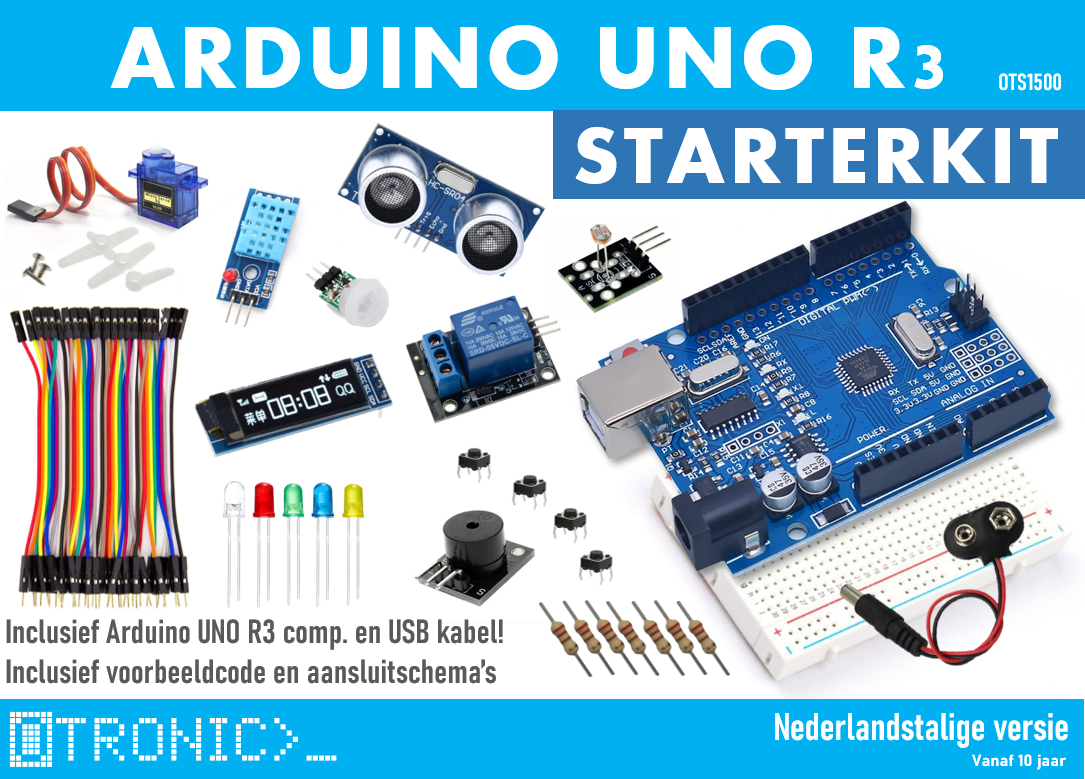

Arduino Starterkit UNO R3 Dutch (OTS1500)

With the Otronic Arduino Starterkit you will discover the world of electronics and programming in a fun and educational way. This Dutch-language kit has been specially developed for both beginners and young techies (from 10 years old). The kit contains everything you need to get started with your first projects right away. In addition, we provide complete example codes and connection diagrams for each component, so you can get started without any hassle!
INCLUDING 40-PAGE PRINTED DUTCH MANUAL!

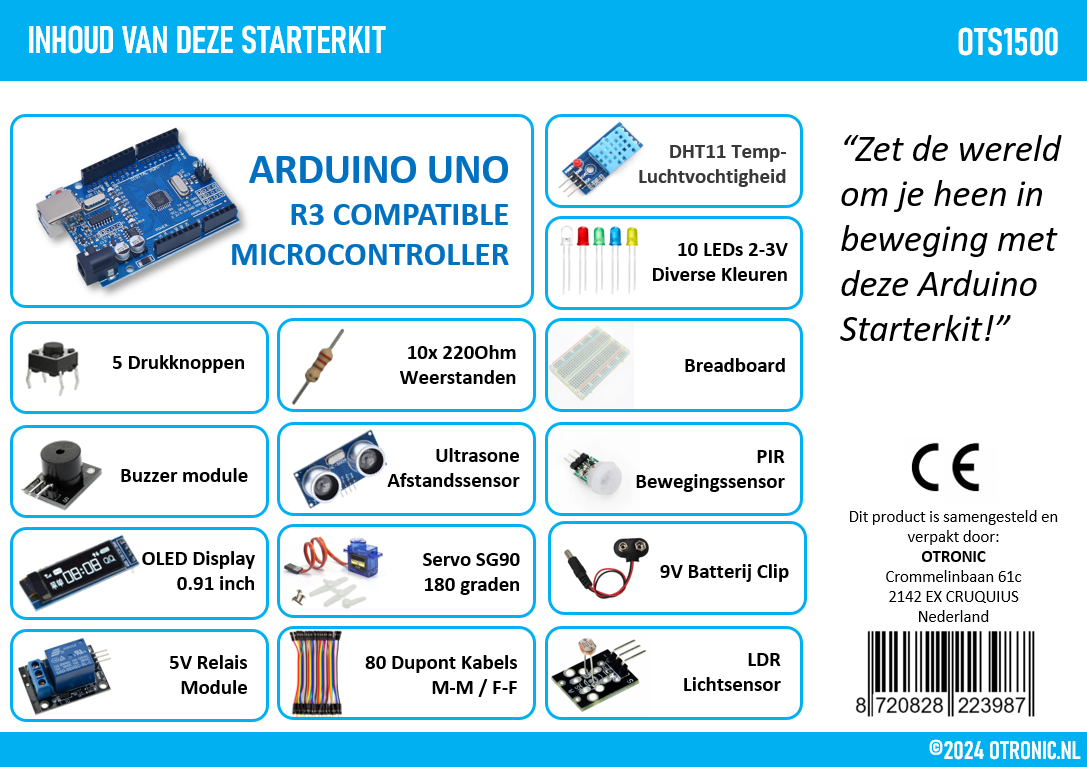

What's in the kit?


Arduino UNO R3 (including USB cable)This is the heart of the kit. The Arduino UNO R3 is a microcontroller that you program to control all kinds of electronic circuits. Arduino's simplicity lets you quickly learn programming and build complex projects.Technical Specifications:

Microcontroller: ATmega328P
Operating Voltage: 5V
Input Voltage (Recommended): 7-12V
Digital I/O Pins: 14 (6 of which are PWM output)
Analog Inputs: 6

Project Ideas:Program an automated LED light show or build a weather station that reads data from the DHT11 sensor.


DHT11 Temperature and Humidity SensorMeasure temperature and humidity with this versatile sensor. Ideal for weather stations and climate control projects.Technical Specifications:

Temperature Range: 0-50°C
Humidity Range: 20-90%

Project Ideas:Build a simple weather station that displays temperature and humidity on its OLED screen.


10 LEDs in 5 Different ColorsLEDs are perfect for creating visual effects and signage. You can control them to create light patterns or make a simple indicator.Technical specifications:

Working voltage: 2-3V depending on color
Current consumption: 10-20mA

Project ideas:Make a flashing warning light or program a visual temperature indicator based on the DHT11 sensor.


5 PushbuttonsPushbuttons are a fundamental part of most interactive electronics. Use them to control your projects, like starting a motor or turning on an LED.Technical Specifications:

Max Voltage: 12V
Max Current: 50mA

Project Ideas:Program an interactive light switch or a counter so that each press of a button turns on an LED.


10 220 Ohm ResistorsResistors are essential for controlling the current through your LEDs and other components. They protect your circuits from overcurrent.Technical Specifications:

Rating: 220 Ohm
Power: 1/4W

Project Ideas:Use them to control the current through your LEDs in all your projects.


Active Buzzer ModuleAdd sound to your projects! This active buzzer makes a sound when triggered by your Arduino, ideal for alarm systems or audible signals.Technical Specifications:

Working Voltage: 5V
Sound Pressure: 85dB

Project Ideas:Build a simple alarm or program the buzzer to sound when a certain temperature is reached.


OLED Display 0.91 inchThis small OLED display is ideal for displaying text and graphs. Perfect for projects where you want to display data visually.Technical Specifications:

Resolution: 128x32 pixels
Interface: I2C

Project Ideas:Display sensor values like temperature and humidity, or build a simple clock.


5V Relay ModuleThis relay module allows you to control larger devices like lights or motors from your Arduino. This makes your projects truly interactive.Technical Specifications:

Operating Voltage: 5V
Max. Switching Current: 10A

Project Ideas:Build a smart switching system to turn on and off devices, such as a fan or lamp.


HC-SR04 Ultrasonic Distance SensorThis sensor measures the distance to an object using ultrasonic sound waves, ideal for robots and distance sensing projects.Technical Specifications:

Measuring Range: 2cm to 400cm
Accuracy: ±3mm

Project Ideas:Build a distance warning system, such as a parking assistant that sounds an alarm when an object gets too close.


Servo SG90 180 DegreesWith this servo you can control movements, for example for robots, movable sensors or automatic doors.Technical specifications:



Working voltage: 4.8-6V
Angle range: 180 degrees

Project ideas:Make a moving sensor platform or a small automatic sliding door.


Dupont Female-Female & Male-Male Jumper Cables (40 Pack)Use these cables to easily connect all components to each other on the breadboard.


BreadboardIdeal for building and testing your circuits without having to solder.


Mini PIR Motion SensorThis sensor detects motion, which is perfect for security projects or automatic lighting systems.Technical Specifications:



Detection Range: 7 meters
Detection Angle: 120 degrees

Project Ideas:Build a motion-controlled light or program a simple alarm system that activates the buzzer when motion is detected.

LDR Module (Photosensitive Resistor)With this sensor you can detect light and make your project react to light conditions, such as automatically controlling lights in the dark.Technical specifications:


Light resistance: 10-20k Ohm

Project ideas:Create an automatic night light that turns on when it gets dark.

9V Battery Clip with JackPower your Arduino when you don't have a USB connection.

With this Otronic Arduino Starterkit you can build a wide range of electronic projects, from simple LED circuits to automatic sensors. Thanks to the included example codes and connection diagrams you can start right away and develop your own innovative creations. For only € 29 incl. VAT, this is the ideal start for anyone who wants to explore the world of electronics!
