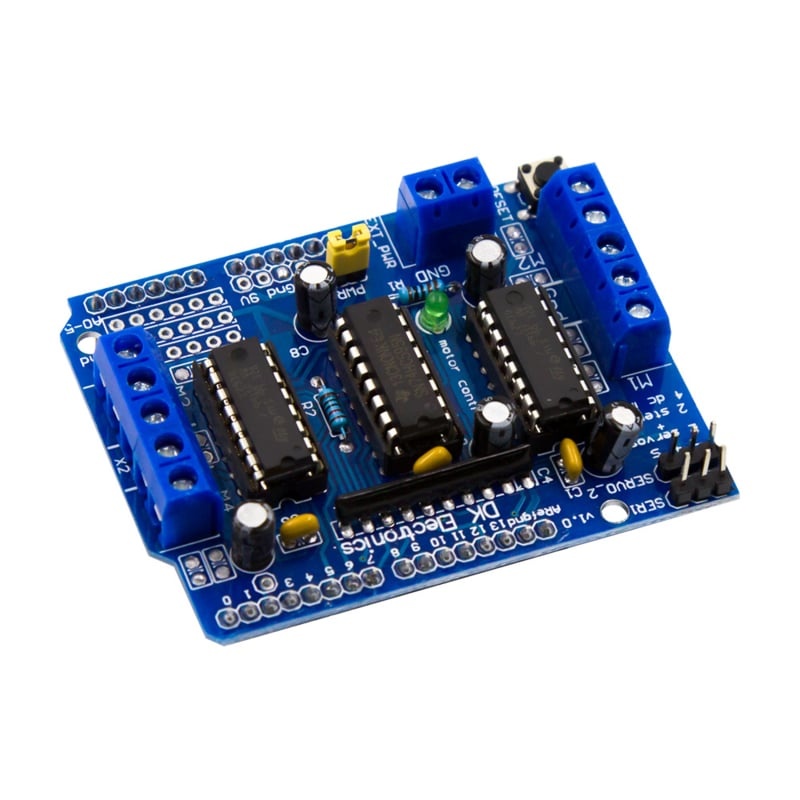

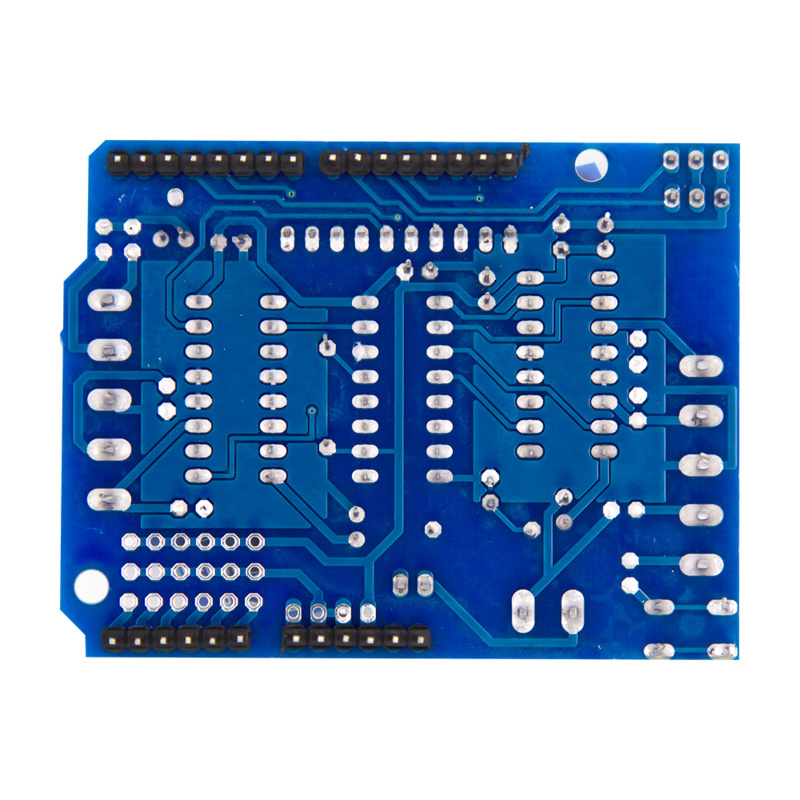

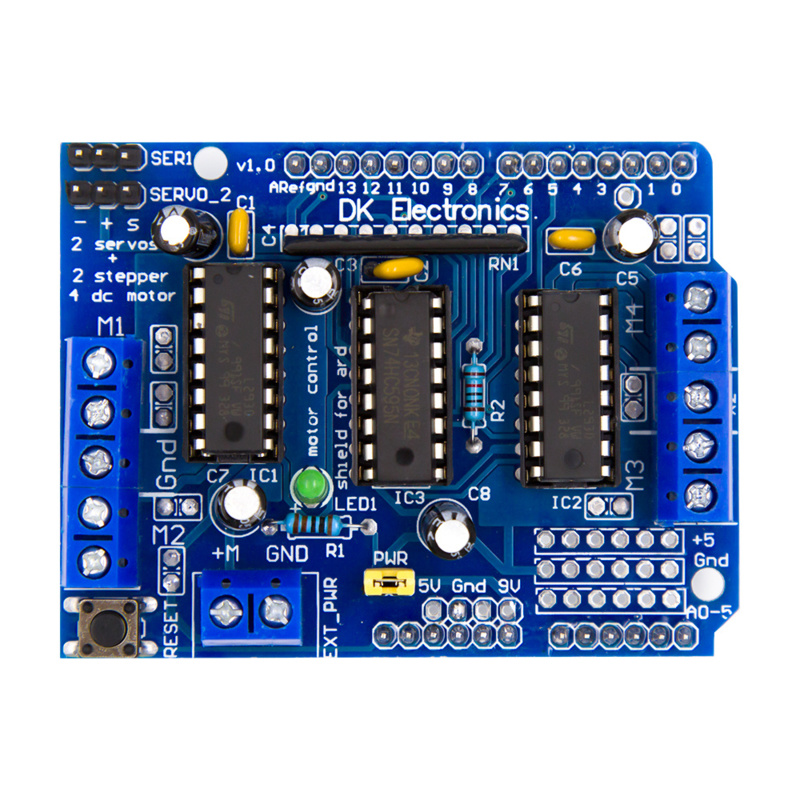

L293D Motor Driver shield for Arduino (OT2040-C125)
Show all:
Electric motors,Drivers
Lage verzendkosten vanaf
Op werkdagen voor 16.30 besteld = dezelfde dag verzonden
30 dagen bedenktijd
1 jaar garantie
Description
Can control 4 DC motors or 2 stepper motors or 2 Servos.- Up to 4 bidirectional DC motors with separate 8 – bit speed control.- Up to 2 stepper motors ( unipolar or bipolar ) with single coil , double coil or interleaved stepping.- 4 H – bridges: each bridge provides 0.6A ( 1.2A peak current ) with thermal protection , can control the motors at 4.5V to 10V DC.- Pull-down resistors keep motors disabled during start-up.- Reset button.- 2 external terminal Power Interface , for separate logic / motor.- Compatible with Arduino Uno, Mega , Diecimila & Duemilanove .DimensionsLength: 7cmWidth: 5.4cmHeight: 1.9cm
