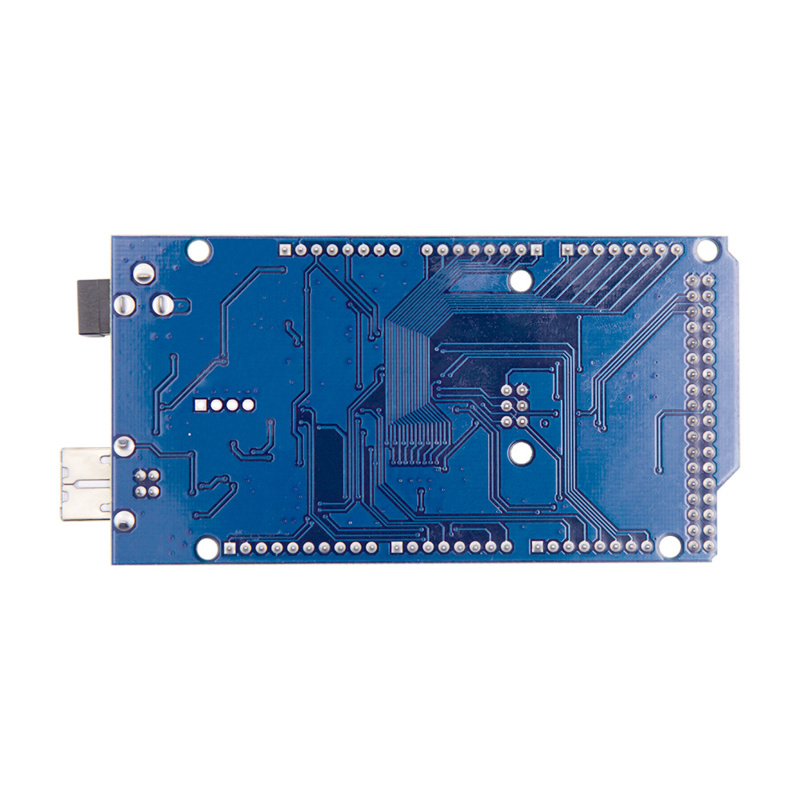

Mega 2560 R3 (Arduino clone) (OT2063-A41)
Show all:
Microcontrollers,Arduino Compatible
Lage verzendkosten vanaf
30 dagen bedenktijd
1 jaar garantie
Description
This Arduino Mega clone works exactly the same as the original Arduino Mega and can be programmed with the Arduino IDE software. This is available for Windows, Mac and Linux.
Download Arduino IDE
NOTE: This Arduino Clone is based on the CH340 USB chip. Sometimes it is necessary to install the driver for this for Windows or Mac. With Linux this is actually rarely the case.
First try if it works without installing the driver. If there is a COM port available in the Arduino IDE that you can upload to, then everything is fine and nothing needs to be installed.
If necessary, you can download the required driver here:
Download the CH340 driver for Windows
Download the CH340 driver for Mac
Download the CH340 driver for Linux

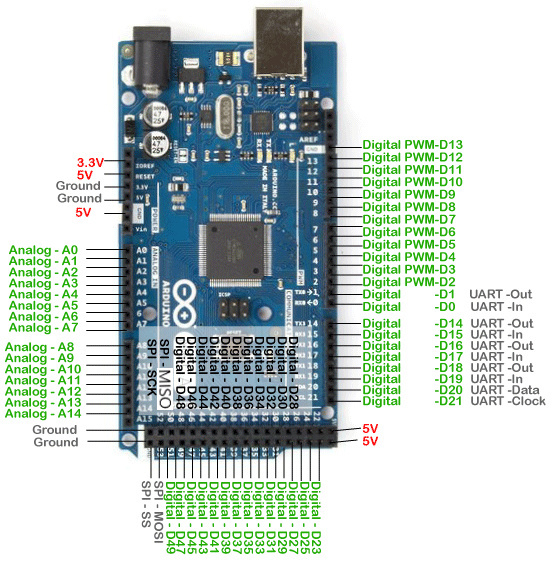

Specifications:- Microcontroller: ATmega2560- Operating voltage: 5V (via USB connection or power supply)- Input voltage (recommended): 7-12V- Input voltage (minimum/maximum): 6-20V- 54 digital input/output pins of which 14 can be used as PWM.- 16 Analog inputs- Maximum current per I/O pin: 40mA- Maximum current for the 3.3V pin: 50mA- 4 UARTs (hardware serial ports)- 16MHz crystal oscillator- one USB connector- power connection- ICSP header- Reset button- 256KB Flash memory- EEPROM 4KB- SRAM 8KBThe Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Disclaimer: Downloading and installing the offered drivers is an extra service from us and entirely at your own risk. We cannot guarantee that the offered drivers are up-to-date. Any malfunctions that arise from the use of these drivers are at the risk of the person installing the drivers.
DimensionsLength: 10.9cmWidth: 5.32cmHeight: 1.14cm
Read moreRead lessDownload Arduino IDE
NOTE: This Arduino Clone is based on the CH340 USB chip. Sometimes it is necessary to install the driver for this for Windows or Mac. With Linux this is actually rarely the case.
First try if it works without installing the driver. If there is a COM port available in the Arduino IDE that you can upload to, then everything is fine and nothing needs to be installed.
If necessary, you can download the required driver here:
Download the CH340 driver for Windows
Download the CH340 driver for Mac
Download the CH340 driver for Linux
Specifications:- Microcontroller: ATmega2560- Operating voltage: 5V (via USB connection or power supply)- Input voltage (recommended): 7-12V- Input voltage (minimum/maximum): 6-20V- 54 digital input/output pins of which 14 can be used as PWM.- 16 Analog inputs- Maximum current per I/O pin: 40mA- Maximum current for the 3.3V pin: 50mA- 4 UARTs (hardware serial ports)- 16MHz crystal oscillator- one USB connector- power connection- ICSP header- Reset button- 256KB Flash memory- EEPROM 4KB- SRAM 8KBThe Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Disclaimer: Downloading and installing the offered drivers is an extra service from us and entirely at your own risk. We cannot guarantee that the offered drivers are up-to-date. Any malfunctions that arise from the use of these drivers are at the risk of the person installing the drivers.
DimensionsLength: 10.9cmWidth: 5.32cmHeight: 1.14cm
