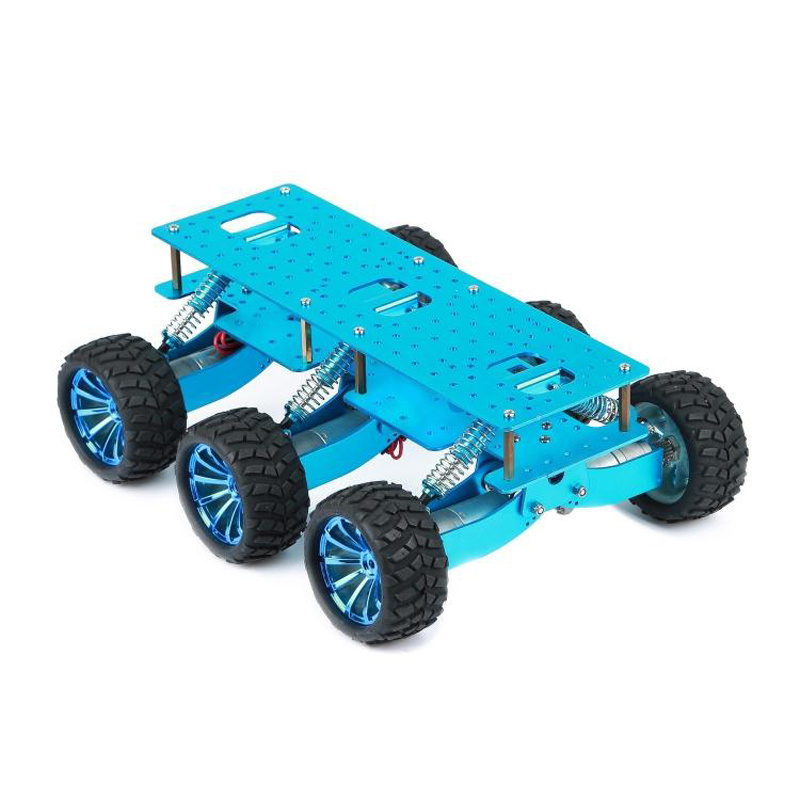

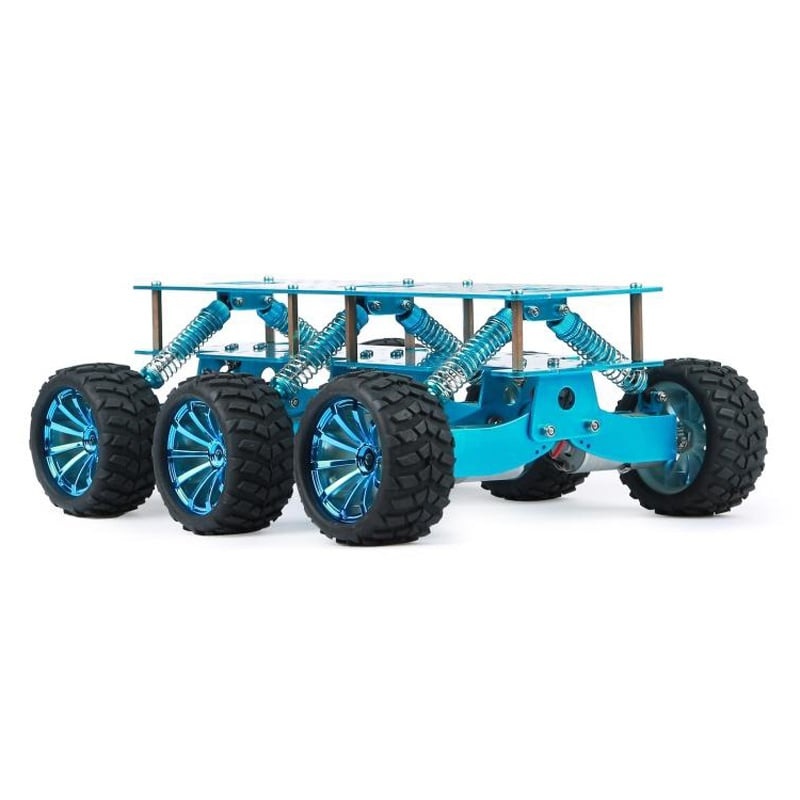

Off-road Chassis with 6 wheel drive Blue (OT3444)

Blue Off-road 6WD Chassis
A high-speed DC motor chassis (1:34) with full metal gearing, which gives the chassis strong off-road performance.
It adopts a seismic design with 6 hydraulic spring shock absorbers attached to the upper body to give the platform better handling characteristics, especially for some complex bumpy terrains.
6WD Mobile platforms can be installed with different kinds of boards or controllers, such as Arduino or Raspberry Pie. The user can install any type, or additional extension of other functions, such as the installation of a manipulator.



Operating voltage

12V



Maximum load

6kg



Rated Current

350mA * 6



Motor original speed

17000 rpm



Output shaft speed

500 rpm



Nominal torque

5 kg / cm



Length (mm)

310



Width (mm)

245



Height (mm)

45



Weight (gm)

1.7kg



Shipment Dimensions

32 × 25 × 5 cm
