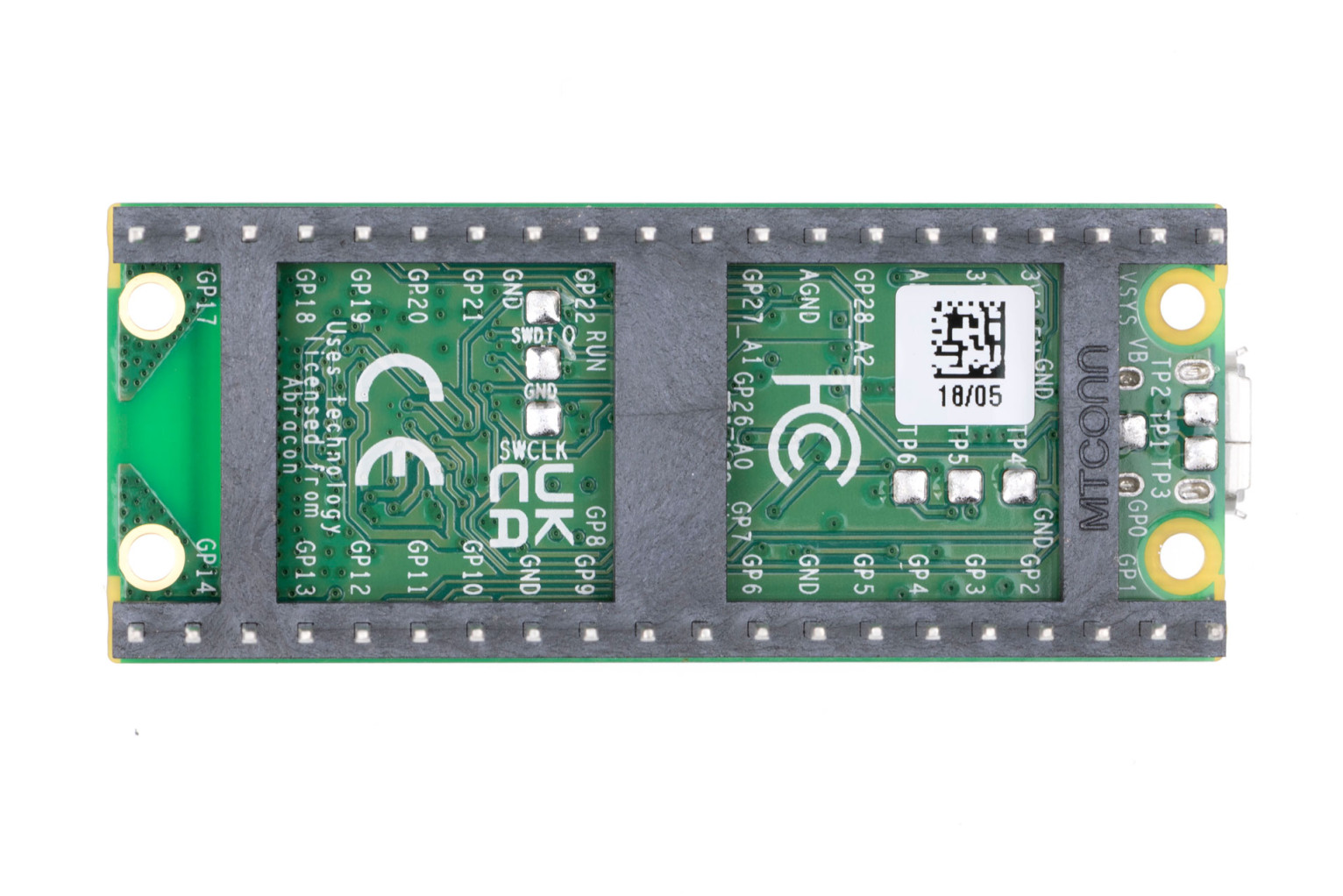

Raspberry Pi Pico WH with onboard WiFi and pre-soldered header pins (OT8735)
Show all:
Microcontrollers,Raspberry Pi Pico
Lage verzendkosten vanaf
30 dagen bedenktijd
1 jaar garantie
Description
This Raspberry Pi Pico is equipped with an RP2040 chip and a CYW43439 wireless chip (IEEE 802.11 b/g/n wireless LAN). It has 2 cores with a clock speed of 133Mhz and an on-chip memory of 264kb. In addition, there is 2MB of flash memory available. The Raspberry Pi Pico has 30 GPIO pins. 4 of these pins are for analog input. There is also a DMA controller, 2 SPI controllers, 2 UARTs, 2 I2C controllers and 16 PWM channels. In short, a very versatile microcontroller.
The Pico W can be powered with a voltage between 1.8V and 5.5V.
The USB connection of the Raspberry Pi Pico W is a micro-USB 1.1 connection. Besides programming the Pico W, it can also be used as a USB host and as a USB device.
NOTE: This is not a regular Raspberry Pi and you cannot run Linux on it. This Pico is a microcontroller and executes Micropython code.
What is the difference between a Raspberry Pi Pico and a Raspberry Pi Pico W
The Raspberry Pi Pico W is identical to the Raspberry Pi Pico but has a CYW43439 wireless chip for WiFi and in the future also Bluetooth 5.2.
Raspberry Pi Pico W Features
RP2040 microcontroller chip developed by Raspberry Pi in England.
CYW43439 wireless chip (IEEE 802.11 b/g/n wireless LAN and Bluetooth 5.2)
Dual-core Arm Cortex M0+ processor with flexible clock speeds up to 133 MHz
264KB SRAM and 2MB on-board Flash memory
Micro USB 1.1 with device and host capability
Low power sleep mode
26x Multifunctional GPIO pins
2x SPI
2x I2C
2x UART
3x 12-bit ADC
16x Controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor
Accelerated floating-point libraries on-chip
8x Programmable I/O (PIO) state machines for custom peripherals
Header pins are pre-soldered
Raspberry Pi Pico W Datasheet PDF
DimensionsLength: 5.25cmWidth: 2.1cmHeight: 0.39cm
Read moreRead lessThe Pico W can be powered with a voltage between 1.8V and 5.5V.
The USB connection of the Raspberry Pi Pico W is a micro-USB 1.1 connection. Besides programming the Pico W, it can also be used as a USB host and as a USB device.
NOTE: This is not a regular Raspberry Pi and you cannot run Linux on it. This Pico is a microcontroller and executes Micropython code.
What is the difference between a Raspberry Pi Pico and a Raspberry Pi Pico W
The Raspberry Pi Pico W is identical to the Raspberry Pi Pico but has a CYW43439 wireless chip for WiFi and in the future also Bluetooth 5.2.
Raspberry Pi Pico W Features
RP2040 microcontroller chip developed by Raspberry Pi in England.
CYW43439 wireless chip (IEEE 802.11 b/g/n wireless LAN and Bluetooth 5.2)
Dual-core Arm Cortex M0+ processor with flexible clock speeds up to 133 MHz
264KB SRAM and 2MB on-board Flash memory
Micro USB 1.1 with device and host capability
Low power sleep mode
26x Multifunctional GPIO pins
2x SPI
2x I2C
2x UART
3x 12-bit ADC
16x Controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor
Accelerated floating-point libraries on-chip
8x Programmable I/O (PIO) state machines for custom peripherals
Header pins are pre-soldered
Raspberry Pi Pico W Datasheet PDF
DimensionsLength: 5.25cmWidth: 2.1cmHeight: 0.39cm
