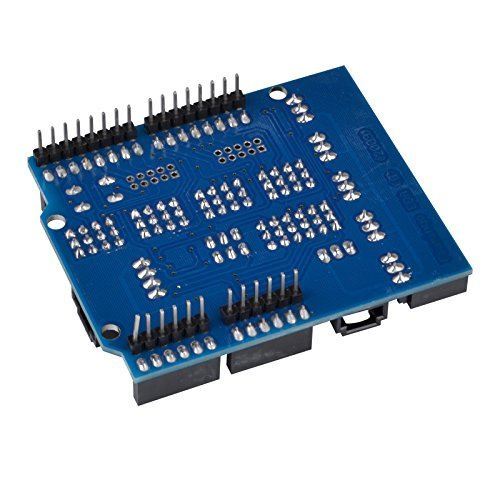

Sensor Shield v4.0 for Arduino UNO R3 (OT2100-C41)

Sensor shield for the Arduino Uno, Mega and Duemilanove. For I2C or UART communication (selectable with jumpers) there is a separate 4-pin interlock connector available. With reset button on the shield. The shield is stackable so that other shields can be connected on top. All inputs and outputs of the Arduino are passed through to sets of 3 header pins with Vcc (V), Ground (G) and Signal (S). The A0 to A5 analog inputs and outputs are passed through to 3-pin interlock connectors. Dimensions Length: 6.7cm Width: 5.7cm Height: 1.8cm
