Description

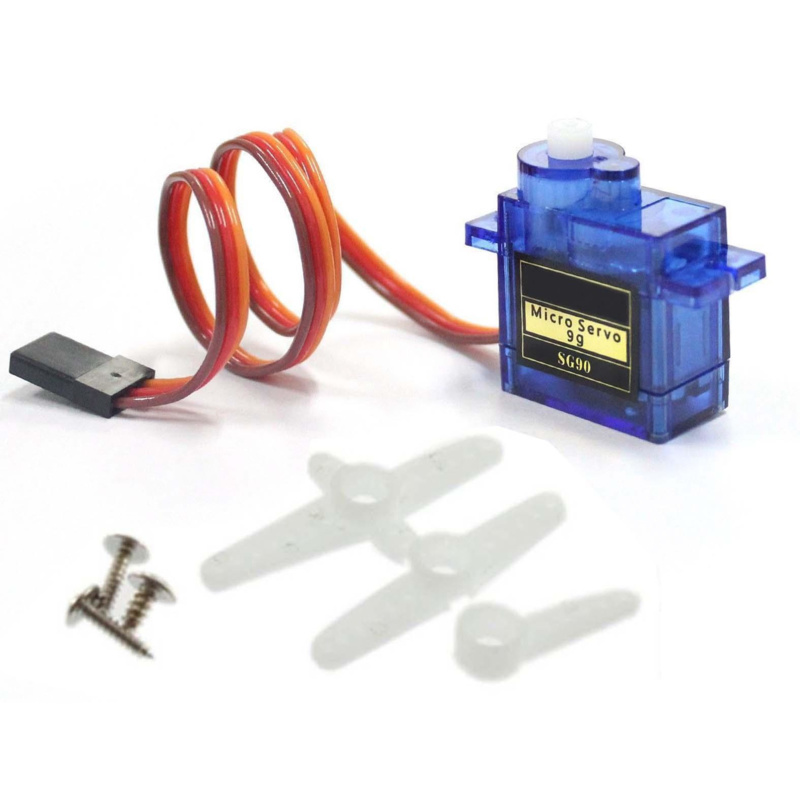

The SG90 Micro Servo is a high-quality, small servo that is perfect for use in hobby projects and small robots. With a compact size of only 23 x 12.2 x 29 mm and weighing only 9 grams, this servo is ideal for use in small spaces where other servos will not fit.
View the SG90 wiring diagram and sample code for Arduino.
The SG90 Micro Servo has a torque of 1.5 kg/cm and can be connected to a voltage of 4.8-6V. It also comes equipped with a 3-pin connector, making it easy to connect to your microcontroller or development board.
This servo has a rotation range of 180 degrees and can be precisely positioned at any angle between 0 and 180 degrees. It also has a fast response time of just 0.1 seconds, making it ideal for applications where speed is important.
Force: 1.8kg/cm
Swing range: approx. 180 degrees
Working voltage: 4.8V-6V
Speed: 0.10 sec / 60 degrees
Dimensions: approx. 22.2 x 11.8 x 31mm
PWM frequency: 50hz (20ms)
Weight: 9g
No-load speed: 0.12 sec / 60 degrees (4.8V)
Torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30 / + 60 degrees Celsius
_x005F_x000D_
View the SG90 wiring diagram and sample code for Arduino.
The SG90 Micro Servo has a torque of 1.5 kg/cm and can be connected to a voltage of 4.8-6V. It also comes equipped with a 3-pin connector, making it easy to connect to your microcontroller or development board.
This servo has a rotation range of 180 degrees and can be precisely positioned at any angle between 0 and 180 degrees. It also has a fast response time of just 0.1 seconds, making it ideal for applications where speed is important.
Force: 1.8kg/cm
Swing range: approx. 180 degrees
Working voltage: 4.8V-6V
Speed: 0.10 sec / 60 degrees
Dimensions: approx. 22.2 x 11.8 x 31mm
PWM frequency: 50hz (20ms)
Weight: 9g
No-load speed: 0.12 sec / 60 degrees (4.8V)
Torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30 / + 60 degrees Celsius
_x005F_x000D_
