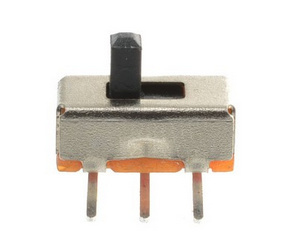

Slide switch SS12D00G2 3-pin (OT5016)

Description Slide Switch | SS12D00G2This slide switch is suitable for use on a breadboard, but also on a printed circuit board or prototyping board.Specifications Slide Switch | SS12D00G2Model: SS-12D00G3Type: 2 Positions0.5A 50V DCContact Resistance: 30m MaxInsulation Resistance: 100m Min at 500V DCWithstand Voltage: AC 500V for 1 minTerminal Length: 3mmPin Pitch: 2.54mmMain Body Size(excluding pins and button): 8 x 4 x 3.8mm(L*W*H)Switch Overall Size: 8 x 4 x 10mm(L*W*H)Button Size: 1.5 x 1.5 x 3mm(L*W*H)Material(external): Plastic, Metal
