UNO Prototype Shield Expansion Board with 170-point Mini Breadboard (OT2056-D126)
Show all:
Prototyping,Breadboards
Ship to all EU countries
Orders placed before 15:00 on working days are shipped the same day.
30 days cooling-off period
1 jaar garantie
Description

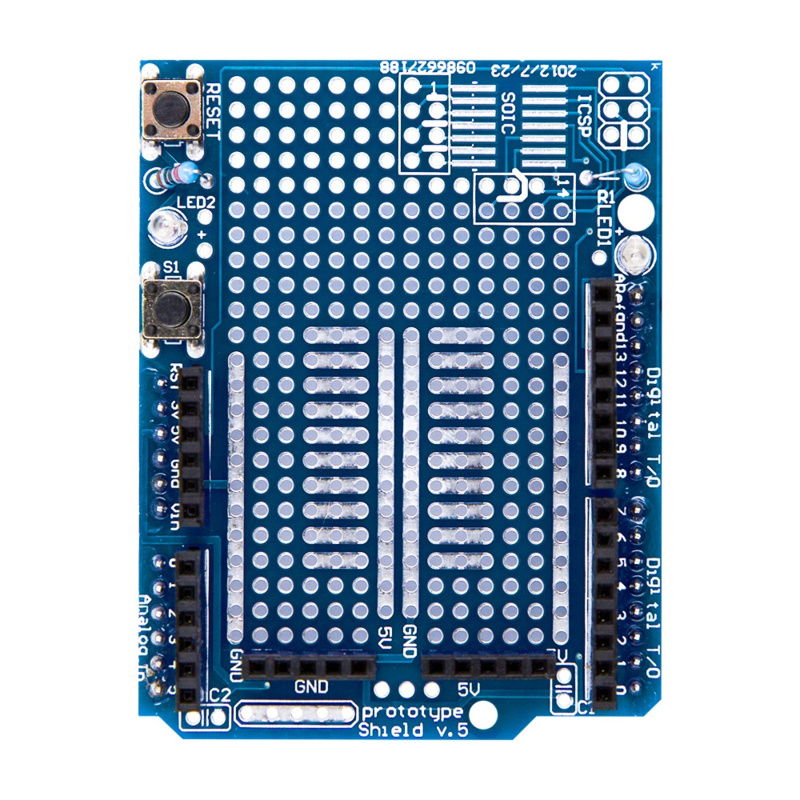

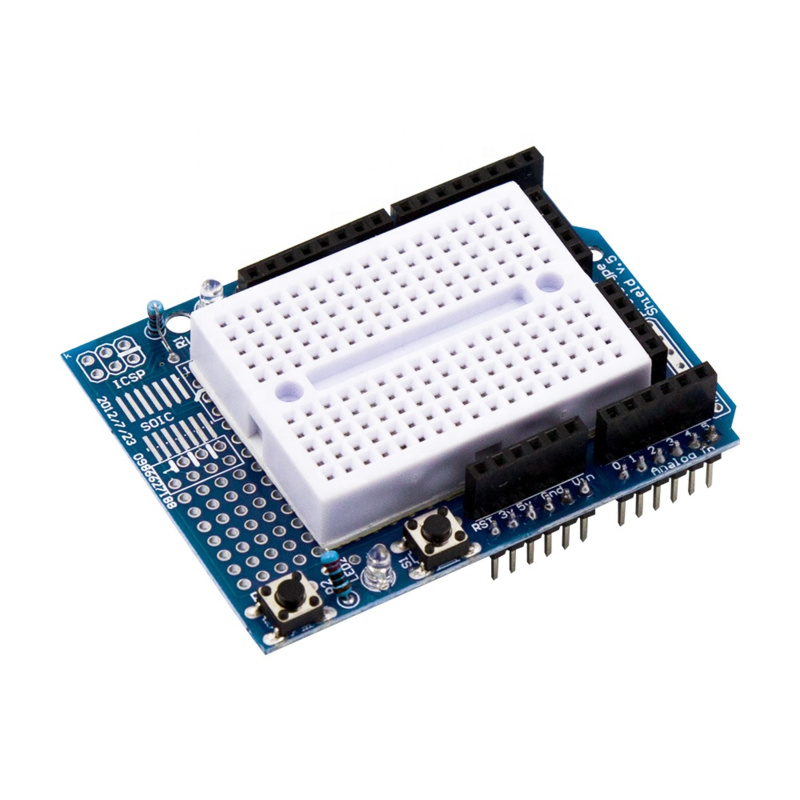

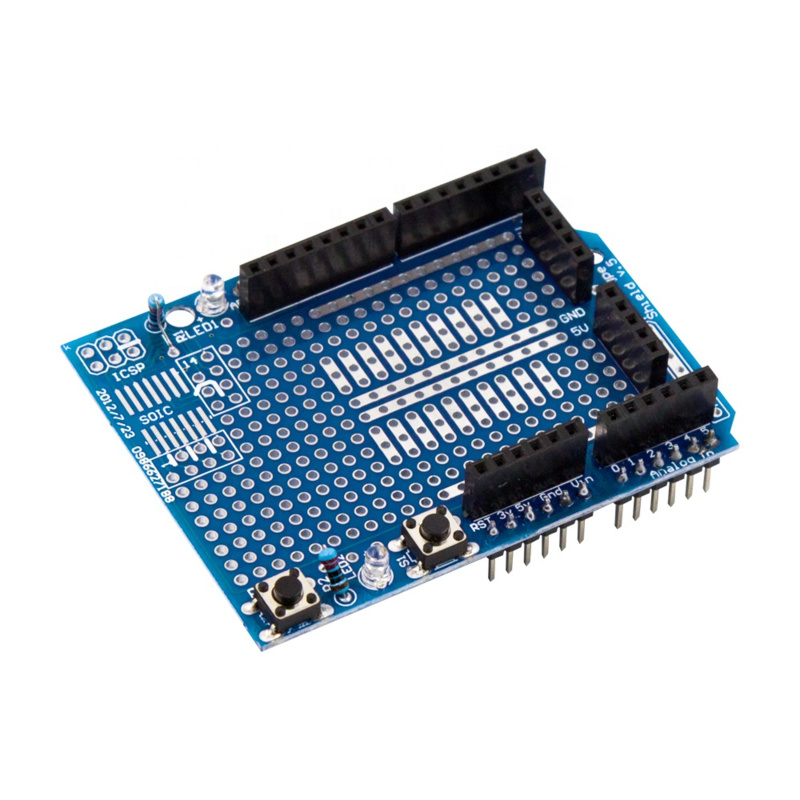

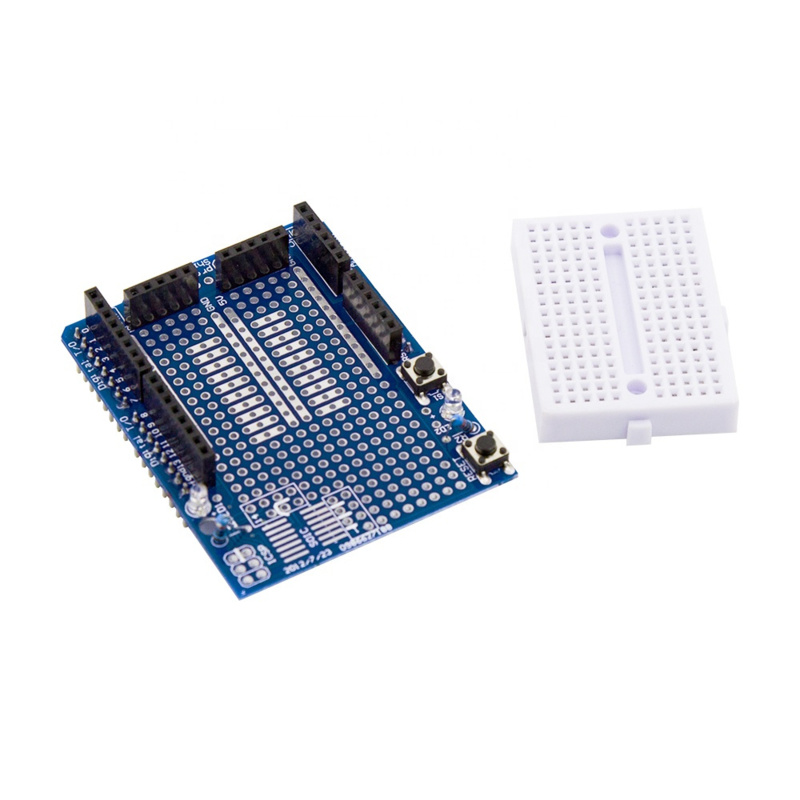

Prototype shield with mini breadboard. Place the shield on your Arduino and start building your circuits. Easy to remove including circuit so that you can use the Arduino for another project and the circuit can be saved. Can be used with Arduino Uno, Leonardo and Mega. Comes with a mini breadboard 170 plug-in points that can be attached to the prototype shield using double-sided tape. Circuit can also be soldered directly to the prototype shield. Prototype shield specifications: – All pins are brought to the shield. – Multiple 5V connections. – Multiple Gnd connections. – Reset button. – 1 Button. – 2 Leds. Dimensions Length: 6.9cm Width: 5.4cm Height: 1.8cm
