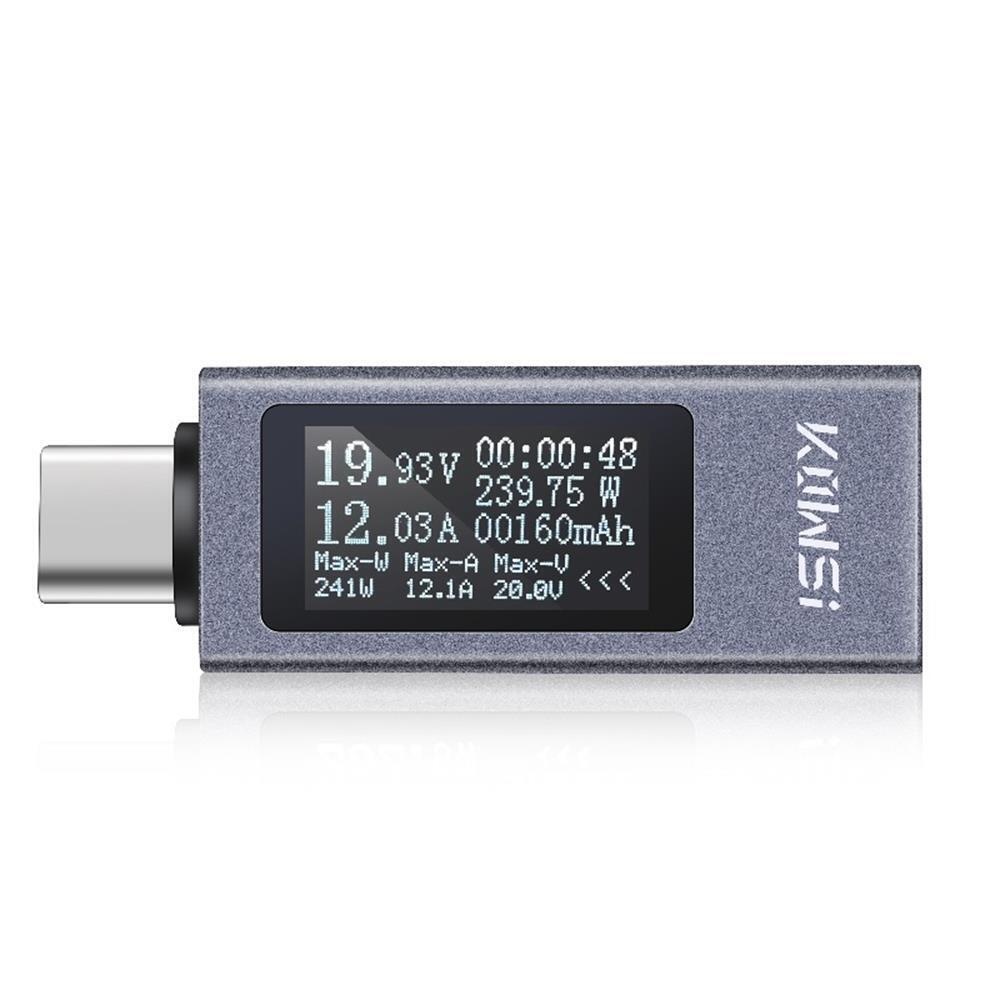

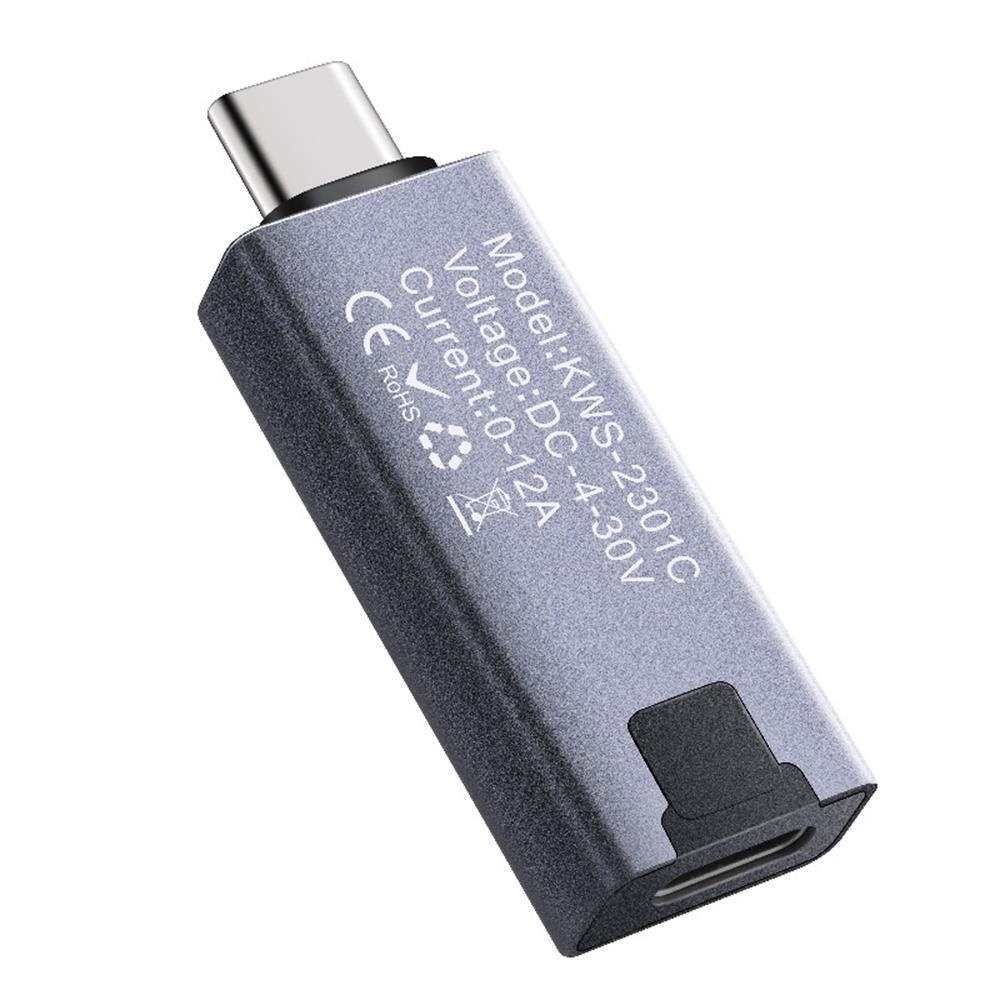

USB-C Multifunction Tester (OT6709)

The USB Multifunction Tester KWS-2301C from Kowsi is a compact and advanced device designed to monitor and analyze the charging performance of electronic devices. This handy tool is capable of measuring various important parameters such as current, voltage, and power.
You can use the button on the back to switch between display modes. Pressing and holding the button will reset the tester and restart the measurement time
Features

Durable Design: The CNC metal housing provides rugged protection against dust and drop damage.
Bright Display: A 0.77 inch OLED HD display ensures clear data viewing even at high currents up to 12A.
Compatibility: Full interface compatibility and two-way current test function support the evaluation of fast charging technologies.
Real-Time Monitoring: Ability to detect the charging status of electrical devices in real time, including voltage and current monitoring.

Technical Specifications

Material: ABS
Voltage: DC 4-30V
Current: 0-12A
Duration: 0-99 hours
Power: 0-360W
Capacity: 0-99999mAh
Electricity: 0-99999Wh
Ambient temperature: up to 50℃
Dimensions: 41x16x9mm_x005F_x000D_
